BaroPAM installation Guide (Mac OS X)

Installation guide for BaroPAM solution for multi-layer authentication to enhance the security of information assets(Mac OS X)



Index

1. Install BaroPAM
1.1 Preparation before installing BaroPAM
1.2 Download BaroPAM installation module
1.3 Create BaroPAM configuration file
1.4 BaroPAM environment settings

2. BaroPAM application
2.1 BaroPAM application process
2.2 BaroPAM application screen
2.3 MacOS login method
2.4 ssh/sftp connection tool

3. Remove BaroPAM
3.1 Remove the BaroPAM environment

4. BaroPAM FAQ

5. About BaroPAM







1. Install BaroPAM



1.1 Preparation before installing BaroPAM



Mac OS X is divided into a mobile CPU architecture (arm64) made by Apple and X86, a CPU architecture made by Intel. Execute the following command to check.



Note) In the case of arm64, a mobile CPU architecture made by Apple



[root] /root > uname -a Darwin igoun-ui-MacBookAir.local 22.3.0 Darwin Kernel Version 22.3.0: Mon Jan 30 20:39:35 PST 2023; root:xnu-8792.81.3~2/RELEASE_ARM64_T8103 arm64



Note) In case of X86 CPU architecture made by Intel



[root] /root > uname -a Darwin lamp_macos1 22.3.0 Darwin Kernel Version 22.3.0: Mon Jan 30 20:42:11 PST 2023; root:xnu-8792.81.3~2/RELEASE_X86_64 x86_64



In order to access information assets and use PAM module, OpenSSH (Open Secure Shell) package must be installed to provide reliable and safe ssh/sftp service. To check the installation, run the following command. If not installed, install "brew install openssh" and "brew install openssl".



[root] /root > ssh -V OpenSSH_9.0p1, LibreSSL 3.3.6



In order to download and install the BaroPAM authentication module, connect with the root account (log in with a general account. Log in with the "sudo -i" command). Create a directory (/usr/local/baropam) to download and install the BaroPAM authentication module as follows.



[root]# mkdir /usr/local/baropam



Grant permissions (read, write, execute) of the directory to download and install the BaroPAM module as follows.



[root]# chmod -R 777 /usr/local/baropam







1.2 Download BaroPAM installation module



After accessing the BaroPAM authentication module with the root account, move to the directory (/usr/local/baropam) to download and install the module, and download the module as follows.



[root] /usr/local/baropam > wget http://nuriapp.com/download/libpam_baro_auth-x.x.tar



When the download of the BaroPAM authentication module is complete, the tar file is decompressed as follows.



[root] /usr/local/baropam > tar -xvf libpam_baro_auth-x.x.tar



When the BaroPAM authentication module is unzipped, the following BaroPAM related modules are created in the baropam directory.



[root] /usr/local/baropam > ls -al 합계 180 drwxrwxrwx  7 root root   4096  8월 23 09:59 . drwxr-xr-x 17 root root   4096  2월 10  2017 .. -r--r--r--  1 root root      8  6월 22 14:51 .baro_acl -r--r--r--  1 root root    279  8월 23 09:59 .baro_auth -rwxr-xr-x  1 root root  43996  8월 21 07:06 baro_auth -rwxr-xr-x  1 root root 115780  8월 21 10:02 pam_baro_auth.so -rw-r--r--  1 root root    192  8월 21 07:08 setauth.sh



Note) In the case of arm64, a mobile CPU architecture made by Apple



[root] /usr/local/baropam > file pam_baro_auth.so pam_baro_auth.so: Mach-O 64-bit dynamically linked shared library arm64   [root] /usr/local/baropam > otool -L pam_baro_auth.so pam_baro_auth.so:         pam_baro_auth.so (compatibility version 0.0.0, current version 0.0.0)         /usr/lib/libpam.2.dylib (compatibility version 3.0.0, current version 3.0.0)         /opt/homebrew/opt/openssl@1.1/lib/libssl.1.1.dylib (compatibility version 1.1.0, current version 1.1.0)         /opt/homebrew/opt/openssl@1.1/lib/libcrypto.1.1.dylib (compatibility version 1.1.0, current version 1.1.0)         /usr/lib/libSystem.B.dylib (compatibility version 1.0.0, current version 1319.0.0)         /usr/lib/libz.1.dylib (compatibility version 1.0.0, current version 1.2.11)



Note) In case of X86 CPU architecture made by Intel



[root] /usr/local/baropam > file pam_baro_auth.so pam_baro_auth.so.0: Mach-O 64-bit dynamically linked shared library x86_64   [root] /usr/local/baropam > otool -L pam_baro_auth.so pam_baro_auth.so.0:         pam_baro_auth.so (compatibility version 0.0.0, current version 0.0.0)         /usr/lib/libpam.2.dylib (compatibility version 3.0.0, current version 3.0.0)         /usr/local/opt/openssl@1.1/lib/libssl.1.1.dylib (compatibility version 1.1.0, current version 1.1.0)         /usr/local/opt/openssl@1.1/lib/libcrypto.1.1.dylib (compatibility version 1.1.0, current version 1.1.0)         /usr/lib/libSystem.B.dylib (compatibility version 1.0.0, current version 1319.0.0)         /usr/lib/libz.1.dylib (compatibility version 1.0.0, current version 1.2.11)





1.3 Create BaroPAM configuration file



1) PAM authentication(.baro_auth)





The BaroPAM environment setting file must be created by executing the baro_auth program, and it must be located under /usr/local/baropam, the directory of the BaroPAM authentication module.



Format)

baro_auth -r rate_limit -R rate_time -t cycle_time –k key_method –e encrypt_flag -H hostname -A acl_type -a acl_filename -S secure_key -s filename



The configuration options of the BaroPAM configuration file are as follows.



Optino	Decumentation	Set value	Etc
-r	OTA key limited number of times (1~10)	3
-R	OTA key time limit (15~600 sec)	30
-t	OTA key authentication cycle (3~60 sec)	30
-k	OTA key authentication method (app1, app256, app384, app512)	app512
-e	Encryption of configuration files (yes or no)	no
-H	Server's hostname (uname -n)	nurit.co.kr
-A	Choose whether to allow or deny 2nd authentication	deny
-a	ACL file name for the account to allow or deny from 2nd authentication (file access permission is 444)	/usr/local/baropam/.baro_acl
-S	Secure key (license key) provided by the vendor	jIqIcHbVqdpj7b4PzBpM2DiIeBvmHFV/
-s	File name including the directory in which to create the BaroPAM configuration file	/usr/local/baropam/.baro_auth



Note) The filename of the -s option is the name of the file including the directory where the BaroPAM configuration file will be created (file access permission is 444). If the hostname of the set server does not match, BaroPAM may not operate normally. If the hostname is changed, it must be reflected in the relevant item of the environment setting.



Ex of use)

[root] /usr/local/baropam > ./baro_auth -r 3 -R 30 -t 30 –l 0 –k app512 –e no -H nurit.co.kr -A deny -a /usr/local/baropam/.baro_acl -S jIqIcHbVqdpj7b4PzBpM2DiIeBvmHFV/ -s /usr/local/baropam/.baro_auth



If the BaroPAM environment setting file is set for each account, connect to the account and proceed with the work. (Not root)



[root] /usr/local/baropam > ./baro_auth -r 3 -R 30 -t 30 –l 0 –k app512 –e no -H nurit.co.kr -A deny -a ~/.baro_acl -S jIqIcHbVqdpj7b4PzBpM2DiIeBvmHFV/ -s ~/.baro_auth



1) Your emergency one-time authentication keys are:

The emergency OTA key is a super authentication key that can be used to access the SSH server again in case you lose it when the OTA key generator, the BaroPAM app, is unavailable, so it is good to write it down somewhere.



2) Enter "y" for all the questions that follow.

   Will it prevent man-in-the-middle attacks? y

 Will the same OTA key enable login to other accounts besides one account? y

   Shall we set the OTA key time limit to 30 seconds? y



The contents set in .baro_auth, the BaroPAM environment setting file, are as follows.



[root] /usr/local/baropam > cat .baro_auth " AUTH_KEY " RATE_LIMIT 3 30 " KEY_METHOD app512 " CYCLE_TIME 30 " SECURE_KEY jIqIcHbVqdpj7b4PzBpM2DiIeBvmHFV/ " ACL_NAME /usr/local/baropam/.baro_acl " ACL_TYPE deny " HOSTNAME nurit.co.kr " DISALLOW_REUSE 33458936 19035576 15364353 54649370 84342192



The setting items of .baro_auth, a BaroPAM configuration file, are as follows.



Item	Decumentation	Set value	Etc
AUTH_KEY	Authentication delimiter (fixed)
RATE_LIMIT	OTA key limit count (1~10), time limit (15~600 sec)	3 30
KEY_METHOD	OTA key authentication method (app1, app256, app384, app512)	app512
CYCLE_TIME	OTA key authentication cycle (3~60 sec)	30
SECURE_KEY	Secure key (license key) provided by the vendor	jIqIcHbVqdpj7b4PzBpM2DiIeBvmHFV/
HOSTNAME	Server's hostname (uname -n)	nurit.co.kr
ACL_TYPE	Differentiate between allow and deny in 2nd authentication	deny
ACL_NAME	ACL Filename for the account to be allowed or excluded from 2nd authentication (file access permission is 444)	/usr/local/baropam/.baro_acl
DISALLOW_REUSE or ALLOW_REUSE	To prevent a man-in-the-middle attack, if "DISALLOW_REUSE" is set, other users cannot log in during the authentication cycle of the OTA key. If allowed, set "ALLOW_REUSE".	DISALLOW_REUSE





2) cURL authentication(.baro_curl)



The name curl stands for "client URL" and was first released in 1997. That is, the client requests data from the server as a script. BaroPAM requests authentication by calling the http/https authentication site with curl.



The BaroPAM environment setting file must be created by executing the baro_curl program, and it must be located under /usr/local/baropam, the directory of the BaroPAM authentication module.



Format)

baro_curl -r rate_limit -R rate_time -t cycle_time –k key_method –e encrypt_flag -H hostname –u auth_url -s filename



The contents of the setting options of the BaroPAM configuration file are as follows.



Optino	Decumentation	Set value	Etc
-r	OTA key limited number of times (1~10)	3
-R	OTA key time limit (15~600 sec)	30
-t	OTA key authentication cycle (3~60 sec)	30
-k	OTA key authentication method (app1, app256, app384, app512)	app512
-e	Encryption of configuration files (yes or no)	no
-H	Server's hostname (uname -n)	nurit.co.kr
-u	The URL to be called includes parameters such as host name (hostname), user account (username), authentication cycle (cycle_time), and OTA key (auth_key).	http://1.23.456.789/baropam/web/result_curl.jsp
-s	File name including the directory in which to create the BaroPAM configuration file	/usr/local/baropam/.baro_curl



Note) The filename of the -s option is the name of the file including the directory where the BaroPAM configuration file will be created (file access permission is 444). If the hostname of the set server does not match, BaroPAM may not operate normally. If the hostname is changed, it must be reflected in the relevant item of the environment setting.



Ex of use)

[root] /usr/local/baropam > ./baro_curl -r 3 -R 30 -t 30 –k app512 –e no -H nurit.co.kr -u http://1.23.456.789/baropam/web/result_curl.jsp -s /usr/local/baropam/.baro_curl



1) Enter "y" for all the questions that follow.

   Will it prevent man-in-the-middle attacks? y

 Will the same OTA key enable login to other accounts besides one account? y

   Shall we set the OTA key time limit to 30 seconds? y



The contents set in .baro_curl, the BaroPAM environment setting file, are as follows.



[root] /usr/local/baropam > cat .baro_curl " AUTH_KEY " RATE_LIMIT 3 30 " AUTH_URL http://1.23.456.789/baropam/web/result_curl.jsp " KEY_METHOD app512 " CYCLE_TIME 30 " HOSTNAME baropam " DISALLOW_REUSE



The setting items of .baro_curl, a BaroPAM configuration file, are as follows.



Item	Decumentation	Set value	Etc
AUTH_KEY	Authentication delimiter (fixed)
RATE_LIMIT	OTA key limit count (1~10), time limit (15~600 sec)	3 30
AUTH_URL	The URL to be called includes parameters such as host name (hostname), user account (username), authentication cycle (cycle_time), and OTA key (auth_key).	http://1.23.456.789/baropam/web/result_curl.jsp
KEY_METHOD	OTA key authentication method (app1, app256, app384, app512)	app512
CYCLE_TIME	OTA key authentication cycle (3~60 sec)	30
HOSTNAME	Secure key (license key) provided by the vendor	nurit.co.kr
DISALLOW_REUSE or ALLOW_REUSE	To prevent a man-in-the-middle attack, if "DISALLOW_REUSE" is set, other users cannot log in during the authentication cycle of the OTA key. If allowed, set "ALLOW_REUSE".	DISALLOW_REUSE





1.4 BaroPAM environment settings



1) PAM authentication



To configure the BaroPAM module, enter it at the top as follows to configure sshd, su, and sudo files.



[root] /usr/local/baropam > vi /etc/pam.d/sshd #%PAM-1.0 auth       required     /usr/local/baropam/pam_baro_auth.so nullok secret=/usr/local/baropam/.baro_auth encrypt=no



* "nullok" means that 2nd authentication (additional authentication) is omitted in the case of an account that does not have BaroPAM set.



For reference, the secret parameter sets the name of the BaroPAM configuration file, and the encrypt parameter sets the encryption/decryption flag (yes or no) of the BaroPAM configuration file.



If the BaroPAM environment setting file is set for each account, the way to set the sshd file to set the BaroPAM module is entered at the top as follows.



[root] /usr/local/baropam > vi /etc/pam.d/sshd #%PAM-1.0 auth       required     /usr/local/baropam/pam_baro_auth.so nullok secret=${HOME}/.baro_auth encrypt=no



If you want to set different BaroPAM environment configuration files for each account in a specific directory instead of setting BaroPAM environment configuration files for each account, enter the following at the top to configure the BaroPAM module in the sshd file.



[root] /usr/local/baropam > vi /etc/pam.d/sshd #%PAM-1.0 auth       required     /usr/local/baropam/pam_baro_auth.so nullok secret=/usr/locla/baropam/auth/.${USER}_auth encrypt=no



For programs like filezilla that cannot perform "Interactive process", the only way is to use the forward_pass option in PAM to enter the OTA key when entering the password. In this case, the openssh client, RDP (Remote Desktop Protocol) of Windows, Radius, filezilla, etc. all have no choice but to input like this.



[root] /usr/local/baropam > vi /etc/pam.d/sshd #%PAM-1.0 auth       required     /usr/local/baropam/pam_baro_auth.so forward_pass secret=/usr/local/baropam/.baro_auth encrypt=no



Enter the OTA key in the password input window (Password & verification code:) using forward_pass. For example, if the OTA key is "123456", just enter "123456".





Using forward_pass, you can enable 2nd authentication for most services that require authentication.



[root] /usr/local/baropam > vi /etc/pam.d/su #%PAM-1.0 auth  required  /usr/local/baropam/pam_baro_auth.so nullok secret=/usr/local/baropam/.baro_auth encrypt=no



If you add the BaroPAM module to the top of the /etc/pam.d/su file, you can apply the 2nd authentication (additional authentication) input even when a general account tries to ascend to "root" with the "su" command for security. this is further improved.



$ su - root Verification code:



If you want to use BaroPAM on the GUI login screen of Mac OS X, the setting method is as follows.



[root] /usr/local/baropam > vi /etc/pam.d/ screensaver, authotization #%PAM-1.0 auth  required  /usr/local/baropam/pam_baro_auth.so use_first_pass forward_pass nullok secret=/usr/local/baropam/.baro_auth encrypt=no



On the GUI login screen of Mac OS X, enter the password first, followed by the OTA key without spaces. For example, if the password is "baropam" and the OTA key is "544636", enter "baropam544636".





Ex) When connecting to a remote desktop using xrdp



[root] /usr/baropam > vi /etc/pam.d/xrdp-sesman #%PAM-1.0 auth       required     /usr/baropam/pam_baro_auth.so forward_pass secret=/usr/baropam/.baro_auth encrypt=no



Enter the OTA key in the password input window (Password) using forward_pass. For example, if the OTA key is "123456", just enter "123456".





2) cURL authentication



To configure the BaroPAM module, enter it at the top as follows to configure sshd, su, and sudo files.



[root] /usr/locla/baropam > vi /etc/pam.d/sshd #%PAM-1.0 auth       required     /usr/local/baropam/pam_baro_curl.so nullok secret=/usr/local/baropam/.baro_curl encrypt=no



* "nullok" means that 2nd authentication (additional authentication) is omitted in the case of an account that does not have BaroPAM set.



For reference, the secret parameter sets the name of the BaroPAM configuration file, and the encrypt parameter sets the encryption/decryption flag (yes or no) of the BaroPAM configuration file.



For programs like filezilla that cannot perform "Interactive process", the only way is to use the forward_pass option in PAM to enter the OTA key when entering the password. In this case, the openssh client, RDP (Remote Desktop Protocol) of Windows, Radius, filezilla, etc. all have no choice but to input like this.



[root] /usr/local/baropam > vi /etc/pam.d/sshd #%PAM-1.0 auth       required     /usr/local/baropam/pam_baro_curl.so forward_pass secret=/usr/local/baropam/.baro_curl encrypt=no



forward_pass option in PAM to enter the OTA key when entering the password. In this case, the openssh client, RDP (Remote Desktop Protocol) of Windows, Radius, filezilla, etc. all have no choice but to input like this. Enter the OTA key in the password input window (Password & verification code:) using forward_pass. For example, if the OTA key is "123456", just enter "123456".





Using forward_pass, you can enable 2nd authentication for most services that require authentication.



[root] /usr/local/baropam > vi /etc/pam.d/su #%PAM-1.0 auth       required     /usr/local/baropam/pam_baro_curl.so forward_pass secret=/usr/local/baropam/.baro_curl encrypt=no



If you add the BaroPAM module to the top of the /etc/pam.d/su file, you can apply the 2nd authentication (additional authentication) input even when a general account tries to ascend to "root" with the "su" command for security. this is further improved.



$ su - root Password & verification code:



If you want to use BaroPAM on the GUI login screen of Mac OS X, the setting method is as follows.



[root] /usr/local/baropam > vi /etc/pam.d/ screensaver, authotization #%PAM-1.0 auth  required  /usr/local/baropam/pam_baro_curl.so use_first_pass forward_pass nullok secret=/usr/local/baropam/.baro_curl encrypt=no



Ex) When connecting to a remote desktop using xrdp



[root] /usr/baropam > vi /etc/pam.d/xrdp-sesman #%PAM-1.0 auth       required     /usr/baropam/pam_baro_curl.so forward_pass secret=/usr/baropam/.baro_curl encrypt=no



Enter the OTA key in the password input window (Password) using forward_pass. For example, if the OTA key is "123456", just enter "123456".





3) Configuration of the sshd daemon



Among the contents of the "/etc/ssh/sshd_config" file, which is a configuration file for setting the sshd daemon, the following parameters need to be changed.



Factor	Before	After	Etc
PasswordAuthentication	yes	no
ChallengeResponseAuthentication or KbdInteractiveAuthentication	no	yes
UsePAM	no	yes



After completing the sshd configuration, make sure that the PAM module is properly added, and then restart the SSH Server.



[root] /usr/local/baropam > launchctl stop com.openssh.sshd [root] /usr/local/baropam > launchctl start com.openssh.sshd



After configuring sshd, be sure to reboot the ssh daemon after confirming that the PAM module is properly added. (System Settings -> General -> Sharing -> Remote Login -> Remote Login: on, you must set to allow access for the next user.)





4) ACL(Access Control list) settings



When using the BaroPAM module, if it is necessary to exclude from the ACL for the account to be excluded from the 2nd authentication, create an ACL file in the directory set when setting the BaroPAM environment, and enter the account to be excluded as follows. (The file access permission for .baro_acl must be set to 444.)



[root] /usr/local/baropam > vi .baro_acl barokey baropam





5) NTP(Network Time Protocol) settings



Since BaroPAM is a time synchronization method, if the server's time is different from the current time, login to the server may not be possible because the OTA keys do not match.



Recently, as a method of time synchronization (time server time synchronization) for information assets, the system time can be set to the current time in the root account using NTP (Network Time Protocol).



To use NTP, the NTP package must be installed by default. To check the installation, run the following command. If it is not installed, install it with the "brew install ntp" command.



[root]# brew install ntp



NTP servers operating in Korea are as follows.



server kr.pool.ntp.org server time.bora.net



Set the NTP server operating in Korea in "/etc/ntp.conf", the configuration file for the ntpd daemon configuration, as follows.



[root]# vi /etc/ntp.conf # # NTP # server kr.pool.ntp.org iburst server time.bora.net   iburst



The iburst option is a kind of option setting that shortens the time required for synchronization.



After the setup for the ntpd daemon setup is complete, it is absolutely necessary to restart the NTP daemon after confirming that the NTP setup has been properly added.



[root]# sudo launchctl stop ntpd [root]# sudo launchctl start ntpd



You can check the ntpd time with the following command.



[root]# ntpq -p remote           refid      st t when poll reach   delay   offset  jitter ==============================================================================  0.freebsd.pool. .POOL.          16 p    -   64    0    0.000    0.000   0.000  106.247.248.106 141.223.182.106  2 u    7   64    1    4.412    0.544   0.000  time.bora.net   204.123.2.5      2 u    7   64    1    5.206    7.741   0.000 *send.mx.cdnetwo 204.123.2.5      2 u    1   64    1    3.968    3.807   0.446  211.52.209.148  216.239.35.12    2 u    1   64    1   11.862    2.838   0.259  dadns.cdnetwork 204.123.2.5      2 u    2   64    1    4.833    0.005   0.408  92.223.73.5 (st 106.247.248.106  3 u    -   64    1    5.015    1.397   0.482

* The displayed ip is the ntp server getting the current time







2. BaroPAM application

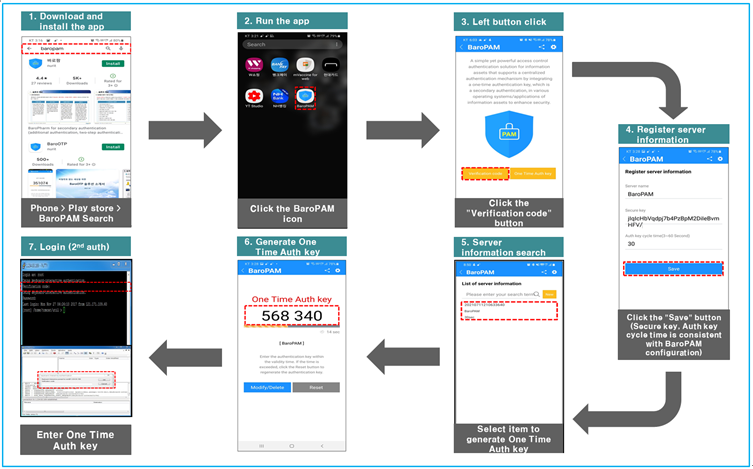

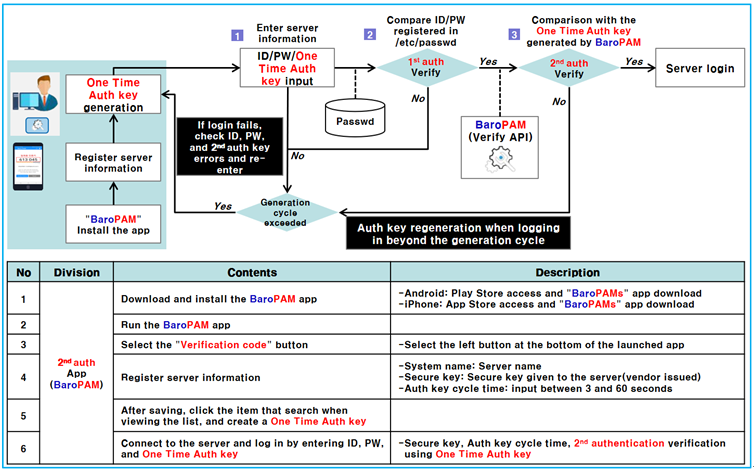

2.1 BaroPAM application process





2.2 BaroPAM application screen





2.3 MacOS login method

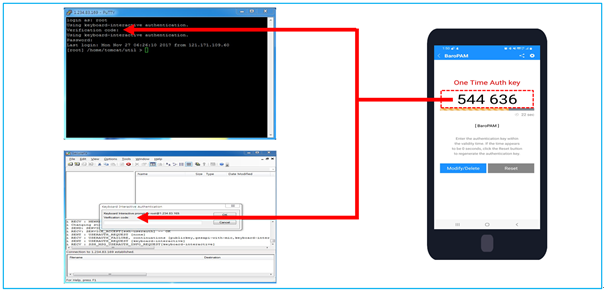

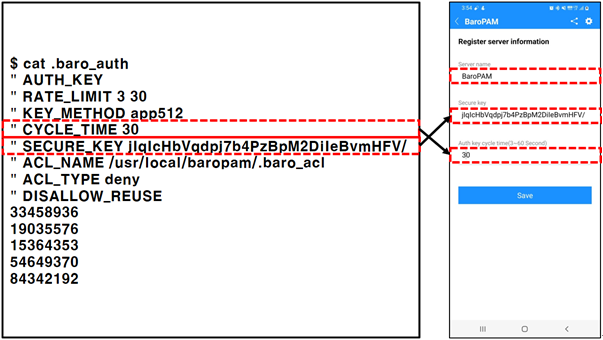

First, you must enter the same "cycle time, secure key, server name" entered on the "BaroPAM Setup" screen on the "Server Information Registration" screen of the "BaroPAM" app.

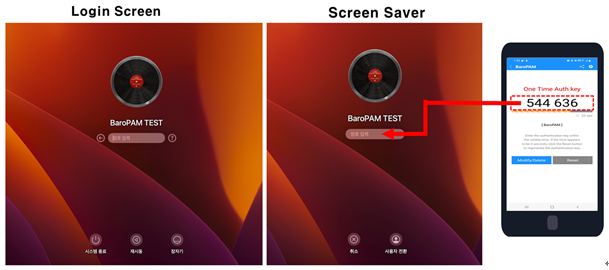

1) GUI login and screen saver screen



Just enter the password first on the GUI login screen or Screen Saver screen of Mac OS X, create a OTA key in the BaroPAM app on your smartphone, and then enter the OTA key. For example, if the password is "baropam" and the OTA key is "544636", enter "baropam544636".





2) ssh/sftp connect tool



When logging in to the Mac OS X environment, enter your user account (Username), generate a OTA key in the "BaroPAM" app on your smartphone, and enter the OTA key and "Password" you created in "Verification code:". Clicking the "Enter" button requests authentication from the BaroPAM module, and if verification succeeds, the login authentication policy of Mac OS X is activated.





If the OTA key entered on the Linux/Unix login screen fails to be authenticated in the BaroPAM verification module, an "Access denied." message appears on the login screen. Various messages related to BaroPAM authentication are left in syslog.



Mar 25 11:10:42 qsh-0415 sshd[27482]: pam_unix(sshd:session): session closed for user root Mar 25 13:52:25 qsh-0415 sshd(pam_baro_auth)[2052]: Try to update RATE_LIMIT line.[3 30 1648183945] Mar 25 13:52:45 qsh-0415 sshd[2050]: Accepted keyboard-interactive/pam for root from 222.108.117.41 port 49835 ssh2 Mar 25 13:52:45 qsh-0415 sshd[2050]: pam_unix(sshd:session): session opened for user root by (uid=0) Mar 25 15:25:47 qsh-0415 sshd(pam_baro_auth)[14119]: Try to update RATE_LIMIT line.[3 30 1648189547] Mar 25 15:25:49 qsh-0415 sshd(pam_baro_auth)[14119]: Verification code generation failed.[Success] Mar 25 15:25:49 qsh-0415 sshd(pam_baro_auth)[14119]: Invalid verification code Mar 25 15:25:51 qsh-0415 sshd[14118]: Received disconnect from 222.108.117.41: 13: The user canceled au





2.4 ssh/sftp connection tool

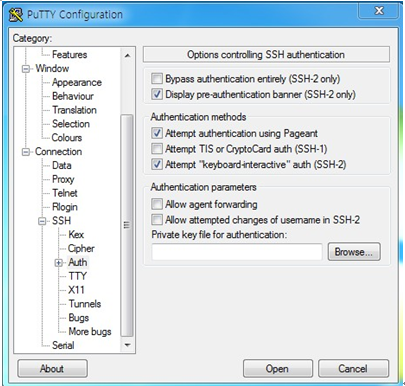

For putty)

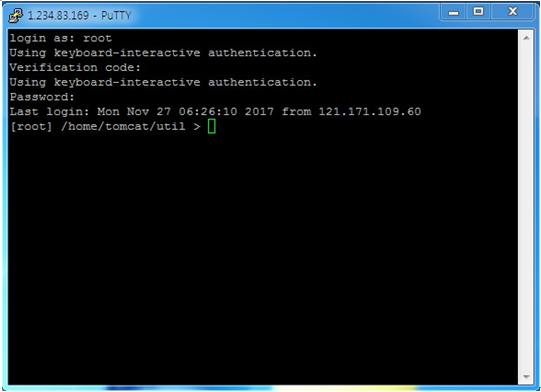

When connecting with Putty, you can do the same as the normal connection process, but there is one thing you need to set. After selecting attempt "Keyboard-Interactive" auth (SSH-2) in "connection -> SSH -> auth" in the environment setting, connect to SSH.







Putty Download and Documentation can be found at the following URL.



https://www.chiark.greenend.org.uk/~sgtatham/putty/latest.html

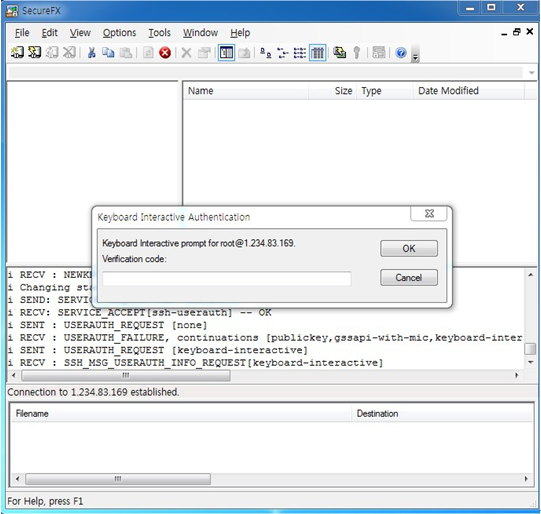

When prompted to enter "Verification code:", enter the OTA key generated by the BaroPAM app.



If authentication is successful, you can enter your SSH login password as follows.

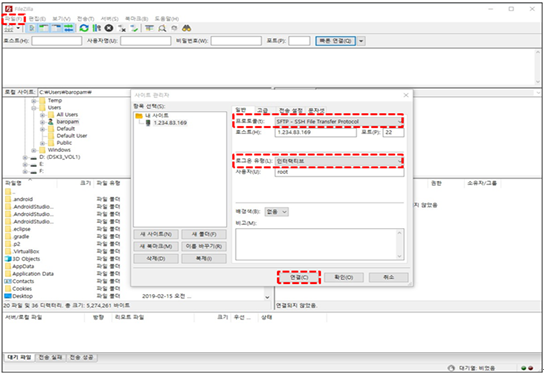

For FileZilla)

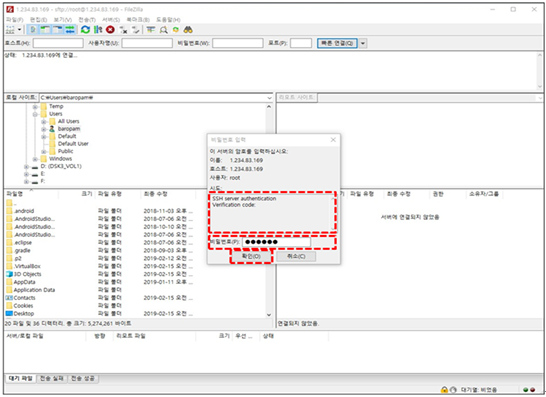

When connecting with FileZilla, it is different from the normal connection process. Select "File(F) -> Site Manager(S)" from the top left menu and select "SFTP - SSH File Transfer Protocol" from the "Protocol(t):" item on the general tab screen. and "Logon type(L):" items, select "Interactive" and click the "Connect(C)" button as follows.

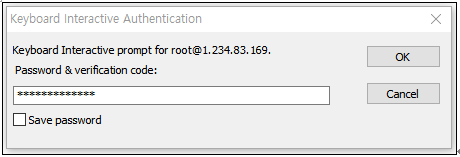

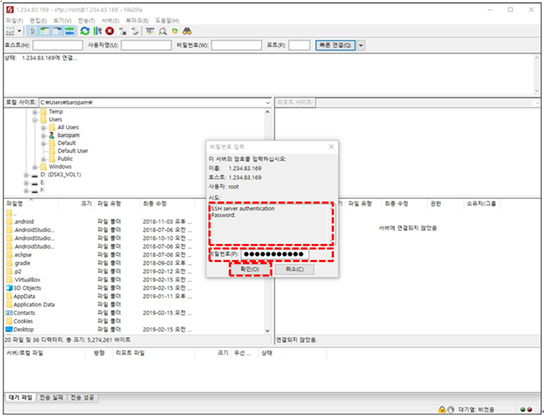

Then, the password input screen appears as follows. Check the contents of "Attempt:" on the password input screen, enter the OTA key generated on the smartphone into the "Password(P):" input field, and click the "OK(O)" button.





Then, the password input screen appears as follows. Check the "Attempt:" content on the password input screen, enter the password for the login account in the "Password(P):" input field, and click the "OK(O)" button to connect to the server.





For SFTP)



When prompted to enter "Verification code:", enter the OTA key generated by the BaroPAM app.



If authentication is successful, you can enter your SFTP login password as follows.



SecureFX Download and Documentation related materials can be found at the following URL.



https://www.vandyke.com/



In conclusion, 2nd authentication can be an effective means of protecting password authentication by adding an extra layer of protection. Whether or not to use it depends on the user's choice, but the adoption of 2nd authentication is an industry trend.





3. Remove BaroPAM



3.1 Remove the BaroPAM environment



If you do not use the BaroPAM module while BaroPAM is installed, comment (#) or delete the settings in the sshd, su, and sudo files as follows.



[root] /usr/local/baropam > vi /etc/pam.d/sshd #%PAM-1.0 #auth       required     /usr/local/baropam/pam_baro_auth.so nullok secret=/usr/local/baropam/.baro_auth encrypt=no



Among the contents of the "/etc/ssh/sshd_config" file configured for the sshd daemon, the following parameters must be changed.



Factor	Before	After	Etc
PasswordAuthentication	no	yes
ChallengeResponseAuthentication	yes	no
UsePAM	yes	no



After completing the sshd configuration, make sure that the PAM module is properly removed and restart the SSH Server.



[root] /usr/local/baropam > launchctl stop com.openssh.sshd [root] /usr/local/baropam > launchctl start com.openssh.sshd





4. BaroPAM FAQ



Message: If you cannot log in because the OTA key does not match

Cause: BaroPAM is a time synchronization method, so the time of the phone and Windows or Server must be the same.

Action: Check if the phone and Windows or Server time are correct.



Message: Feb  7 07:59:09 eactive sshd(pam_baro_auth)[29657]: ACL file ".baro_acl" must only be accessible by user id root

Cause: Permission of .baro_acl file is different.

Action: Set Permission of .baro_acl file to 444.



Message: Feb  7 08:02:15 eactive sshd(pam_baro_auth)[29739]: Failed to acl file read ".baro_acl"

Cause: Occurs when the .baro_acl file does not exist.

Action: Create a .baro_acl file in the baropam home directory. (Set Permission to 444)



Message: Cannot look up user id xxxxx

Cause: Occurs when user ID xxxxx cannot be retrieved.

Action: Register user id xxxxx in /etc/passwd file.



Message: Failed to secret file read .baro_auth

Cause: Occurs when the secret file does not exist.

Action: Check the existence of the secret file.



Message: Secret file .baro_auth must only be accessible by root

Cause: Occurs when the permission of the .baro_auth file is different.

Action: Set Permission of .baro_auth file to 444.



Message: Invalid file size for .baro_auth

Cause: Occurs when the size of the .baro_auth file is not 1 < size < 64K.

Action: Check the size of the .baro_auth file.



Message: Could not read .baro_auth

Cause: Occurs when the .baro_auth file does not exist or the permission of the file is not 444.

Action: Check the existence of the .baro_auth file and the permission of the file.



Message: Invalid file contents in .baro_auth

Cause: Occurs when the content (rule) of the .baro_auth file is incorrect.

Action: Check the contents of the .baro_auth file.



Message: Failed to create tmp secret file[error message]

Cause: Occurs when a temporary secret file cannot be created.

Action: Check the error message for the reason why the temporary secret file could not be created.



Message: Failed to open tmp secret file .baro_auth~[error message]

Cause: Occurs when the temporary secret file .baro_auth~ could not be opened.

Action: Check the error message for the reason why the temporary secret file .baro_auth~ could not be opened.



Message: Secret file .baro_auth changed while trying to use one-time authentication key

Cause: Occurs when secret file .baro_auth is changed while using OTA key.

Action: Try logging in again.



Message: Failed to update secret file .baro_auth[error message]

Cause: Occurs when the secret file cannot be changed.

Action: Check the error message for why the secret file could not be changed.



Message: Invalid RATE_LIMIT option. Check .baro_auth

Cause: Occurs when the RATE_LIMIT setting value of the secret file .baro_auth file is set incorrectly.

Action: Check the setting values of the limit count (1 < RATE_LIMIT < 100) and the limit time (1 < interval < 3600).



Message: Invalid list of timestamps in RATE_LIMIT. Check .baro_auth

Cause: Occurs when updated timestamps in the RATE_LIMIT option among the contents of the .baro_auth file, which is a secret file, are incorrect.

Action: Check the updated timestamps in the RATE_LIMIT option of the .baro_auth file, which is the secret file.



Message: Try to update RATE_LIMIT line.

Cause: The message displayed when you log in normally.

Action: No action



Message: Too many concurrent login attempts. Please try again.

Cause: When the DISALLOW REUSE option of the .baro_auth file, which is the secret file, (In the OTA key generation cycle, one login only) is set.

Occurs when login is retried within the OTA key creation cycle after successful login.

Action: Login retry after OTA key generation cycle.



Message: Trying to reuse a previously used time-based code.

       Retry again in 30 seconds.

       Warning! This might mean, you are currently subject to a man-in-the-middle attack.

Cause: The DISALLOW_REUSE option of the .baro_auth file, which is the secret file, is an option in preparation for man-in-the-middle attacks.

A man-in-the-middle attack occurs when an unauthorized entity places itself between two communication systems and intercepts the passing of information that is currently in progress.

In a nutshell, what could be called a modern wiretapping system.

Action: No action



Message: Failed to allocate memory when updating .baro_auth

Cause: Occurs when memory allocation fails when updating the secret file, .baro_auth.

Action: Technical support



Message: Can't find SECURE_KEY[error message]

Cause: Occurs when there is no SECURE_KEY option or set value in the .baro_auth file, which is the secret file.

Action: Check the SECURE_KEY option or setting value of the .baro_auth file, which is the secret file.



Message: Verification code generation failed.[error message]

Cause: Occurs when OTA key verification fails.

Action: Login retry.



Message: Invalid verification code

Cause: Occurs when OTA key verification fails.

Action: Login retry.



Message: Invalid verification code

        Can not make/remove entry for session.

Cause: The server's system time is not correct.

Action: Check if the system time of the server is correct with the date command, and if it is incorrect, adjust the time.

         1. date Command Change the server's system time (temporary solution)

         2. Check whether ntp is set, and if it is set, reduce the cycle for setting the ntp time. If not set, ntp must be set.



Message: Mar 12 15:37:01 baropam gdm(pam_baro_auth)[1215]: [ID 128276 auth.error] No user name

available when checking verification code

Cause: If you are not a usable user when verifying the authorization code (occurs when you are not a registered user).

Action: Check with your system administrator to see if your Login-ID is registered.



Message: Apr  3 13:06:13 kdn sshd[3577]: PAM unable to dlopen(/usr/baropam/pam_baro_auth.so):

/usr/baropam/pam_baro_auth.so: cannot open shared object file: No such file or directory

       Apr  3 13:06:13 kdn sshd[3577]: PAM adding faulty module: /usr/baropam/pam_baro_auth.so

Cause: It occurs because the /usr/baropam/pam_baro_auth.so file does not exist.

Action: Check if the BaroPAM module file (pam_baro_auth.so) exists. If not, copy it from the BaroPAM installation file.



Message: mm_log_handler: write: Broken pipe

          mm_request_send: write: Broken pipe

Cause: This is how often keepalive messages should be sent to the server within seconds.

 The server may close connections that have been idle for too long. client (ServerAliveInterval) or You can update the server (ClientAliveInterval).

Action: You can set ServerAliveInterval in /etc/ssh/ssh_config on the client machine or ClientAliveInterval in /etc/ssh/sshd_config on the server machine. If the error persists, the interval should be reduced.

        ServerAliveInterval ==> If no data is received from the server, ssh sets the timeout interval in seconds to request a response from the server by sending a message over an encrypted channel. Defaults to 0, indicating that this message is not sent to the server. This option only applies to protocol version 2.

       ClientAliveInterval ==> If no data is received from the client, sshd sends a message over an encrypted channel to request a response from the client. Default is 0. Indicates that this message is not sent to the client. This option only applies to protocol version 2.



       To update your server(and restart your sshd) ==> Update the server (to restart sshd) and

       echo "ClientAliveInterval 60" | sudo tee -a /etc/ssh/sshd_config



       Or client-side: ==> Or client-side:

       echo "ServerAliveInterval 60" >> ~/.ssh/config



       ClientAliveInterval: Interval to check if client is alive

       ClientAliveCountMax: The number of times the connection is maintained even if there is no response from the client

 For example, if ClientAliveInterval=15, ClientAliveCountMax=3, disconnect after 45 seconds



Message: May 19 12:37:37 baropam sshd(pam_baro_auth)[1416]: Failed to acl file read "(null)"

Cause: Occurs due to acl file existence and file permission issues.

Action: Create empty acl file .baro_acl file with 444 permissions.



Message: Failed to compute location of secret file

Cause: Occurs when the secret file set in pam does not exist in the directory.

Action: If the secret file set in pam does not exist in the directory, the secret file must be created in the directory.

         ex) auth required /usr/baropam/pam_baro_auth.so nullok secret=/usr/baropam/.baro_auth

encrypt=no



Message: Failed to compute location of encrypt flag

Cause: Occurs when the encryption flag does not exist in pam.

Action: Encryption flags (yes, no) must be set in pam.

         ex) auth required /usr/baropam/pam_baro_auth.so nullok secret=/usr/baropam/.baro_auth

encrypt=no



Message: If ssh connection is not available after installing HamoniKR OS

Cause: It occurs because the firewall of HamoniKR OS is set.

Action: After disabling the firewall of HamoniKR OS, restart ufw.

        > sudo ufw disable

        > sudo service ufw restart



Message: BaroPAM applied to Screen saver is released after rebooting Grooroom OS

Cause: When Grooroom OS is rebooted, lightdm, a setting file related to Screen saver, is initialized.

Action: Just set BaroPAM in the restore file "/usr/share/debian-system-adjustments/pam.d/lightdm".



Message: Oct 14 10:09:43 baropam sshd[18075]: PAM unable to dlopen(/usr/baropam/pam_baro_auth.so):

/usr/baropam/pam_baro_auth.so: undefined symbol: curl_easy_setopt

Cause: It occurs because the library related to the web development tool cURL (Client for URLs) does not exist.

Action: For Redhat series, use "yum install curl" and others with "sudo apt-get install curl" command.



Message: Did not receive verification code from user

          error: ssh_msg_send: write: Broken pipe

Cause: Occurs when the secure key is set incorrectly.

Action: Check the set Secure key.

Check if the secure key is provided by the vendor.



Message: PAM: authentication thread exited unexpectedly.

       *** glibc detected *** su: free(): invalid pointer: 0x00002aede020c9e2 ***

Cause: Occurs when the BaroPAM environment setting file (.baro_nurit) does not exist.

Action: Check if the BaroPAM environment setting file (.baro_nurit) exists. If not, copy it from the BaroPAM installation file.



5. About BaroPAM





Version 1.0 - Official Release - 2016.12.1

Copyright ⓒ Nurit corp. All rights reserved.

http://www.nurit.co.kr



Company: Nurit Co., Ltd.

Registration Number: 258-87-00901

CEO: Jongil Lee

Tel: +8202-2665-0119(Technical support, sales inquiry)

email: mc529@nurit.co.kr

Address: #913, 15, Magokjungang 2-ro, Gangseo-gu, Seoul (Magok-dong, Magok Techno Tower 2)
