BaroCRYPT integration Guide(Cubrid)

API guide for the BaroCRYPT solution for lightweight and fastest cryptographic algorithms(Cubrid)



Index

1. BaroCRYPT
1.1 BaroCRYPT Overview
1.2 BaroCRYPT Features/Benefits

2. BaroCRYPT Integration API
2.1 Preparations before using the interlocking API
2.2 BaroCRYPT Integration API

3. BaroCRYPT Integration API(DB)
3.1 What is a Stored Function?
3.2 Java Module (barocrypts.class)

4. About BaroCRYPT





1. BaroCRYPT



1.1 BaroCRYPT Overview



The BaroCRYPT solution is a lightweight and fastest encryption algorithm based on the XXTEA (Extended Extended Tiny Encryption Algorithm), a compact and easy-to-implement block encryption algorithm using the Feistel cipher.







1.2 BaroCRYPT Features/Benefits



Based on the XXTEA (aka Corrected Block TEA) encryption algorithm, the BaroCRYPT solution is an optimal solution capable of quickly encrypting and decrypting data even under extreme constraints such as legacy hardware systems (embedded) with a minimum amount of usable RAM. Is as follows.



■ It is a small and easy-to-implement block encryption algorithm based on the Feistel cipher, which is small in size, fast and easy to implement.

■ It is a small-sized algorithm based on the Feistel cipher, and has high encryption strength compared to its size.

■ Although the size of the algorithm is small, it is the fastest and safest algorithm in

existence.

■ Compared to other block encryption algorithms, it is easy to implement, easy to apply to environments with large hardware specification constraints, and freely used.

■ It is a block encryption algorithm that encrypts 64 bits (8 bytes) and uses a 128 bit (16 byte)

key.

■ Corrected Block TEA (XXTEA) is a block cipher algorithm originally designed to correct the

weakness of Block TEA

■ Provides free customizing and convenience of interlocking development with various application

programs. (API integration in Java and C languages)

■ TO_ENCRYPTS (encryption) and TO_DECRYPTS (decryption) functions are provided for easy use in SQL statements.

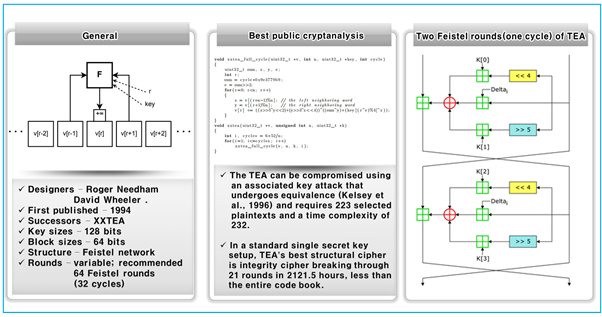

※ What is a Feistel Cipher?



It is a repetitive block cipher in which the ciphertext is encrypted from the plaintext while repeating the same substitution and substitution. It is a cipher similar to the Data Encryption Standard (DES). The other halves do an exclusive OR (XOR) and then swap each other. Do this process in the same pattern for each permutation, but do not exchange each other in the last permutation. The subkey used during encryption is reversed during decryption.







2. BaroCRYPT Integration API



2.1 Preparations before using the interlocking API



Since the BaroCRYPT module is written based on Java (barocrypt.jar) and C (libbarocrypt.so), the latest JDK 6.x or higher must be installed, and the environment settings for using the Java module are as follows.



① Java enbirenment environment settings(.profile)

export JAVA_HOME=/usr/lib/jvm/java-1.7.0-openjdk-1.7.0.131.x86_64 export CLASSPATH=$JAVA_HOME/lib/tools.jar:$JAVA_HOME/lib/classes12.jar:$JAVA_HOME/lib/barocrypt.jar



② Java version check

> java -version java version "1.7.0_131" OpenJDK Runtime Environment (rhel-2.6.9.0.el5_11-x86_64 u131-b00) OpenJDK 64-Bit Server VM (build 24.131-b00, mixed mode)



When using a Java virtual machine provided by a vendor other than SUN, the path where the Java VM (libjvm.so) is located must be added to the Library Path. At this time, the path of the libjvm.so file is different for each OS platform and support bit, so set it carefully. For example, on a SUN Sparc machine, the path to the libjvm.so file is $JAVA_HOME/jre/lib/sparc.





2.2 BaroCRYPT Integration API



The symmetric key (64 bytes) used for field or data encryption/decryption is fixed inside the program. To use the Java module (barocrypt.jar), the Java module including the directory where the barocrypt.jar file exists (/home/baropam/crypt) must be set in the class path.



export CLASSPATH=$CLASSPATH:/home/baropam/crypt/barocrypt.jar



① baro_encrypts function



- NAME

  baro_encrypts



- SYNOPSIS

  public static String baro_encrypts(String data)



- DESCRIPTION

  A function that encrypts data.

  data: data to encrypt



- RETURN VALUES

  return encrypted data



② baro_decrypts function



- NAME

  baro_decrypts



- SYNOPSIS

  public static String baro_decrypts(String data)



- DESCRIPTION

 A function to decrypt data.

  data: data to decrypt



- RETURN VALUES

  Return the decrypted data



③ Example of using data encryption/decryption



import barocrypt.barocrypt.*;   public static void main(String[] args) {     try {         String encrypt_data = baro_encrypts(args[0]     );         String decrypt_data = baro_decrypts(encrypt_data);           System.out.println("text         = [" + args[0]      + "]");         System.out.println("encrypt_data = [" + encrypt_data + "]");         System.out.println("decrypt_data = [" + decrypt_data + "]");     } catch (Exception e) {         e.printStackTrace();     } finally {     } }











3. BaroCRYPT Integration API(DB)



3.1 What is a Stored Function?



Using Stored Functions, you can implement complex program logic that cannot be implemented with SQL, and allow users to manipulate data more easily. A stored function can be said to be a block unit that has a flow of execution commands to manipulate data, can be easily manipulated, and can be managed.



Cubrid supports the development of stored functions in Java. Java stored functions are executed in the Java Virtual Machine (JVM) hosted by Cubrid.



Java stored functions can also be called from SQL. It can be easily called from Java applications using JDBC.



The benefits of using Java stored functions include.

- Productivity and usability

  Once Java stored functions are created, they can be used over and over again. The user can call the stored function in SQL and use it. It can be easily called from Java applications using JDBC.

- Excellent interoperability and portability

 Java stored functions use the Java Virtual Machine, so you can use them anywhere and anytime as long as your system has a Java Virtual Machine available.





3.2 Java module (barocrypts.class)





1) Check the cubrid.conf file



Move to the Cubrid installation location and check if the setting value of java_stored_procedure in the cubrid.conf file is yes, and if it is no, set it to yes, save and close. Default is no. (The location of the cubrid.conf file is in the CUBRID installation location/conf folder)





2) loadjava utility



The loadjava utility is used to load compiled Java files or JAR (Java Archive) files into CUBRID. When you load a Java *.class file or *.jar file using the loadjava utility, the file is moved to the appropriate database path.



$ loadjava [option] database-name java-class-file



database-name: Database name from which to load the Java file

java-class-file: Java class file name or jar file name to load

option: -y automatically overwrites a class file with the same name if it exists. Default is no. When loading without specifying the -y option, if a class file with the same name exists, whether to overwrite it or not is asked.





3) Java module Load



The method to load a Java module into the Java space within Cubrid is as follows.



> loadjava –y sbpdb barocrypts.class





4) Creation and confirmation of encryption stored function



You can create it by entering the query mode of the Cubrid manager in the SQL window. You must commit after creation.



CREATE FUNCTION function name(parameter name parameter type) RETURN return type AS LANGUAGE language name NAME 'class name.function name(parameter type) return return type;



Create and check TO_ENCRYPTS (encryption function) and TO_DECRYPTS (decryption function) in the SQL window, that is, Cubrid manager query mode as follows.



CREATE OR REPLACE FUNCTION TO_ENCRYPTS (data String) RETURN String AS LANGUAGE JAVA NAME 'barocrypts.barocrypt_encrypts(java.lang.String) return java.lang.String';   CREATE OR REPLACE FUNCTION TO_DECRYPTS (data String) RETURN String AS LANGUAGE JAVA NAME 'barocrypts.barocrypt_decrypts(java.lang.String) return java.lang.String';   commit;   SELECT * FROM db_stored_procedure WHERE sp_type = 'FUNCTION' AND LANG = ‘JAVA’;   sp_name        sp_type     return_type  arg_count  lang    target                                                                      owner ========================================== 'TO_ENCRYPTS'  'FUNCTION'  'STRING'     1          'JAVA'  'barocrypts.barocrypt_encrypts(java.lang.String) return java.lang.String'  'DBA' 'TO_DECRYPTS'  'FUNCTION'  'STRING'     1          'JAVA'  'barocrypts.barocrypt_decrypts(java.lang.String) return java.lang.String'  'DBA'



Registered Java stored function information can be checked in the db_stored_procedure system virtual class and db_stored_procedure_args system virtual class. In the db_stored_procedure system virtual class, you can check the name and type of the stored function, the return type, the number of arguments, the Java class specification, and the owner of the Java stored function. In the db_stored_procedure_args system virtual class, information about the arguments used in stored functions can be checked.





5) Encryption function (TO_ENCRYPTS, TO_DECRYPTS) test



SELECT TO_ENCRYPTS('qwerqwerqwer이종일qwerqwer') FROM db_root;   TO_ENCRYPTS('QWERQWERQWER이종일QWERQWER') -------------------------------------------------------------------------------- BDx8KvL4xf0dHUf7LJl/edUWGwaJGGYtzYKhc5VvcHdnBArs   SELECT TO_DECRYPTS('BDx8KvL4xf0dHUf7LJl/edUWGwaJGGYtzYKhc5VvcHdnBArs') FROM db_root;   TO_DECRYPTS('BDX8KVL4XF0DHUF7LJL/EDUWGWAJGGYTZYKHC5VVCHDNBARS') -------------------------------------------------------------------------------- qwerqwerqwer이종일qwerqwer









4. About BaroCRYPT





Version 1.0 - Official Release - 2016.12.1
