BaroPAM integration Guide (RADIUS)

Application guide of BaroPAM solution, a 3-stepauthentication solution for user identification and authentication in RADIUS environment



Index

1. RADIUS authentication

1.1 Introduction

1.2 Configuration architecture

1.3 Component

1.4 Firewall Requirements

2. FreeRADIUS installation and setup
2.1 FreeRADIUS installation
2.2 FreeRADIUS settings

3. BaroPAM installation and setup
3.1 Preparation before installing BaroPAM
3.2 Download BaroPAM installation module
3.3 Create BaroPAM configuration file
3.4 BaroPAM environment settings

4. Install and configure MySQL/MariaDB
4.1 Install MariaDB
4.2 MariaDB configuration

5. FreeRADIUS integration test
5.1 PAM, cURL authentication
5.2 SQL authentication

6. About BaroPAM





1. RADIUS authentication



1.1 Introduction



RADIUS (Remote Authentication Dial In User Service) is a networking protocol that manages centralized authentication, authorization, and accounting (AAA, Accounting takes charge of various post-processing after authentication and authorization) for users to connect to the network and receive network services. provides RADIUS is a server access authentication and accounting protocol established in 1991 by Livingston Enterprises, Inc. developed in It was later listed as an IETF standard.



Because it has a wide range of support and can be used in a ubiquitous environment, it is often used by ISPs and corporations to manage Internet or intranet access, wireless network authentication, and integrated mail services. Used in modems, wireless access points, digital subscriber lines, virtual private networks, TCP and UDP ports, web servers, etc.



RADIUS is a client and server protocol that operates at the application layer and is transmitted over the user datagram protocol. Remote access servers, virtual private networks, port authentication on network switches, and network access servers (NAS) all have components that communicate with a RADIUS server. RADIUS is often the basis for IEEE 802.1X authentication.



RADIUS servers often run as background processes on Linux/Unix systems or Windows servers.



The process flow, the RADIUS authentication process, is relatively simple but important to understand.



1. The application client attempts to connect to the application server and provides credentials (login-ID and password) along with a OTA key.



2. The application server receives this information, looks up the user in the local catalog, and verifies that the authentication type is PAM.



3. Then decide where to authenticate external users.



4. Using the RADIUS connection information, the application server forwards credential details to the RADIUS server.



5. The RADIUS server first does "Primary Authentication" with Login-ID/Password using PAM, which can be PAM, HTTP, SQL, Active Directory, LDAP service, etc.



6. If validity is confirmed, the RADIUS server performs "Secondary Authentication" with the OTA key with the BaroPAM module, which is a secondary authentication service.



7. If validation is confirmed, the RADIUS server sends an "Access-Accept" response back to the application server, then accepts and completes the connection.



Consistent and accurate timing is a key requirement for the operation of the proposed solution. When using a RADIUS host and a time-based One-Time Authentication key, the device with the BaroPAM service and BaroPAM app installed must have consistent time, so NTP (Network Time Protocol) must be set.

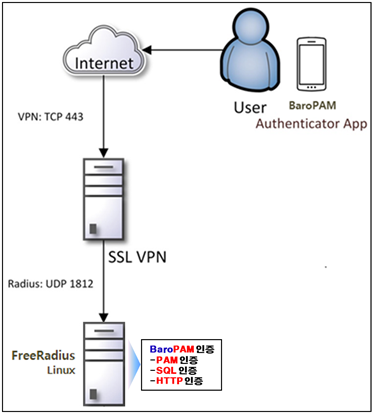

1.2 Configuration architecture







1.3 Component



-Rocky linuxx

-FreeRADIUS

-BaroPAM PAM Library, Service, & APP

-Pluggable Authentication Module (PAM)





1.4 Firewall Requirements



1) User -> NAS

-TCP 443: SSL VPN



2) NAS -> RADIUS

-UDP 1812: RADIUS









2. FreeRADIUS installation and setup



2.1 FreeRADIUS installation



[root@localhost ~]# dnf -y install freeradius freeradius-utils



When trying to uninstall the installed FreeRADIUS è dnf -y erase freeradius freeradius-utils



If MySQL/MariaDB is linked, the MySQL/MariaDB module must be additionally installed.



[root@localhost ~]# dnf install -y freeradius-mysql



After installing FreeRADIUS, you must create a certificate for EAP.



$ cd  /etc/raddb/certs $ ./bootstrap



If you do not create a certificate for EAP, the following error occurs.



Failed reading private key file /etc/raddb/certs/server.pem :error:06065064:digital envelope routines:EVP_DecryptFinal_ex:bad decrypt rlm_eap_tls: Failed initializing SSL context rlm_eap (EAP): Failed to initialise rlm_eap_tls /etc/raddb/mods-enabled/eap[17]: Instantiation failed for module "eap"





2.2 FreeRADIUS settings



1) PAM, cURL authentication



Change both user and group to root as follows.



[root@localhost ~]# vi /etc/raddb/radiusd.conf #user = radiusd #group = radiusd user = root group = root



Using FreeRADIUS requires running as root to access BaroPAM in the user's home directory.



For easier troubleshooting, enable additional logging by editing /etc/raddb/radiusd.conf in the log directive.



auth = yes auth_badpass = yes auth_goodpass = yes



To enable PAM you need to edit /etc/raddb/sites-enabled/default. Uncomment the #PAM line to enable PAM.



[root@localhost ~]# vi /etc/raddb/sites-enabled/default   #Pluggable Authentication Modules. pam



Remove the comment (#) to enable FreeRADIUS login "auth_log" and "reply_log".



[root@localhost ~]# vi /etc/raddb/sites-enabled/default   #         #  If you want to have a log of authentication requests,         #  un-comment the following line, and the 'detail auth_log'         #  section, above. #       auth_log         auth_log           #         #  If you want to have a log of authentication replies,         #  un-comment the following line, and the 'detail reply_log'         #  section, above. #       reply_log         reply_log



Create a soft link for PAM in /etc/raddb/mods-enabled/ to enable PAM as follows.



[root@localhost ~]# ln -s /etc/raddb/mods-available/pam /etc/raddb/mods-enabled/



Change Ipv4addr and secret as follows.



[root@localhost ~]# vi /etc/raddb/clients.conf   client localhost { ipaddr = 127.0.0.1 ipv4addr = *    # any.  127.0.0.1 == localhost secret = baropam require_message_authenticator = no nas_type = other }



Change the authentication type to PAM as follows.



[root@localhost ~]# vi /etc/raddb/users   DEFAULT Group == "disabled", Auth-Type := Reject Reply-Message = "Your account has been disabled." DEFAULT Auth-Type := PAM





2) SQL authentication



Create a soft link for SQL in /etc/raddb/mods-enabled/ to enable SQL as follows.



[root@localhost ~]# ln -s /etc/raddb/mods-available/sql /etc/raddb/mods-enabled/



Change Ipv4addr and secret as follows.



[root@localhost ~]# vi /etc/raddb/clients.conf   client localhost { ipaddr = 127.0.0.1 ipv4addr = *    # any.  127.0.0.1 == localhost secret = baropam require_message_authenticator = no nas_type = other }



Now configure FreeRADIUS to use MySQL/MariaDB. Edit the /etc/raddb/mods-available/sql file as follows.



driver = "rlm_sql_null" ==> driver = "rlm_sql_mysql" dialect = "sqlite"      ==> dialect = "mysql"



When configuring FreeRADIUS to work with MySQL/MariaDB, the MySQL configuration assumes the use of TLS by default. Comment out the TLS section as we are not using an SSL certificate here.



mysql { # If any of the files below are set, TLS encryption is enabled # tls { # ca_file = "/etc/ssl/certs/my_ca.crt" # ca_path = "/etc/ssl/certs/" # certificate_file = "/etc/ssl/certs/private/client.crt" # private_key_file = "/etc/ssl/certs/private/client.key" # cipher = "DHE-RSA-AES256-SHA:AES128-SHA" # tls_required = yes # tls_check_cert = no # tls_check_cert_cn = no #} # If yes, (or auto and libmysqlclient reports warnings are # available), will retrieve and log additional warnings from # the server if an error has occured. Defaults to 'auto' warnings = auto



Uncomment the server, port, login and password and change some values ​​to set the MySQL/MariaDB connection information.



# Connection info: # server = "localhost" port = 3306 login = "radius" password = "baropam" # Database table configuration for everything except Oracle radius_db = "radius"   read_clients = yes



Change the group permission of the edited /etc/raddb/mods-available/sql file to radiusd.



chgrp -h radiusd /etc/raddb/mods-enabled/sql





3) allow firewall



Firewalld must be configured to allow RADIUS packets.



RADIUS uses port 1812 for authentication and port 1813 for accounting, so you need to allow traffic on these ports. Installing FreeRADIUS adds a configuration to your firewall, so allow RADIUS traffic and run the following command.



[root@localhost ~]# firewall-cmd --permanent --zone=public --add-port=1812/udp success [root@localhost ~]# firewall-cmd --permanent --zone=public --add-port=1813/udp success



or



[root@localhost ~]# firewall-cmd --add-service=radius --permanent success



You need to reload the firewall for the changes to take effect, then run the following command.



[root@localhost ~]# firewall-cmd --reload success



Note) Run firewall firewall-cmd installation

[root@localhost ~]# firewall-cmd usage: see firewall-cmd man page No option specified.   [root@localhost ~]# firewall-cmd --zone=public --permanent --add-port=21/tcp FirewallD is not running     1. Check if it works   1-1. Method [root@localhost ~]# systemctl status firewalld * firewalld.service - firewalld - dynamic firewall daemon    Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)    Active: inactive (dead)      Docs: man:firewalld(1)   1-2. Method [root@localhost ~]# firewall-cmd --state not running     2. Check firewalld installation [root@localhost ~]# yum list installed firewalld Loaded plugins: fastestmirror Loading mirror speeds from cached hostfile  * base: ftp.daumkakao.com  * epel: ftp.riken.jp  * extras: ftp.daumkakao.com  * updates: ftp.daumkakao.com  * webtatic: sp.repo.webtatic.com Installed Packages firewalld.noarch                       0.4.4.4-6.el7                       @base     3. Delete package [root@localhost ~]# yum remove firewalld.noarch     4. firewall installation [root@localhost ~]# yum install firewalld     5. firewall run [root@localhost my.cnf.d]# systemctl start firewalld     6. Check firewall status [root@localhost my.cnf.d]# systemctl status firewalld * firewalld.service - firewalld - dynamic firewall daemon    Loaded: loaded (/usr/lib/systemd/system/firewalld.service; enabled; vendor preset: enabled)    Active: active (running) since Tue 2018-01-30 17:12:19 KST; 4s ago      Docs: man:firewalld(1)  Main PID: 21620 (firewalld)    CGroup: /system.slice/firewalld.service            `-21620 /usr/bin/python -Es /usr/sbin/firewalld --nofork --nopid





4) Create RADIUS service for auto start



Create a RADIUS service for automatic startup.



[root@localhost ~]# systemctl enable radiusd.service Created symlink /etc/systemd/system/multi-user.target.wants/radiusd.service -> /usr/lib/systemd/system/radiusd.service.





5) Authentication server settings

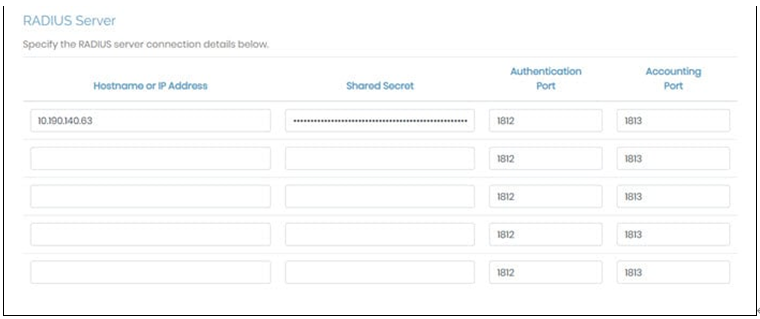

Ex) Authentication of OpenVPN: RADIUS setting screen

 * Enable RADIUS authentication: Yes, Authentication Method: PAP, Shared Secret: baropam

(PAP, Ppassword authentication protocolassword Authentication Protocol)

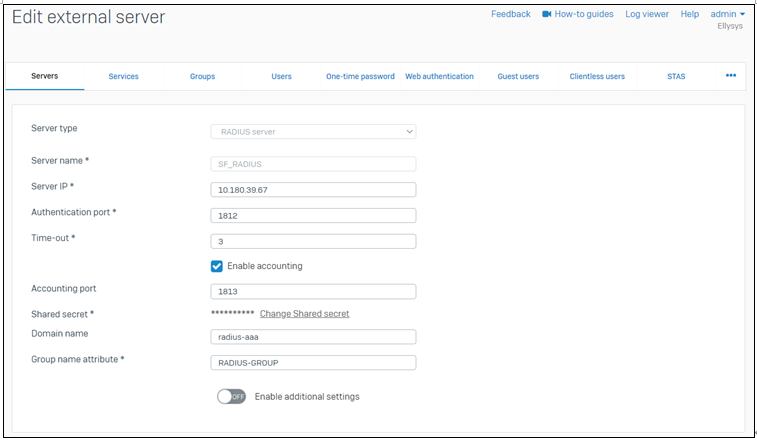

Ex) Authentication server setting screen of Sophos SSLVPN

 * Shared Secret: baropam

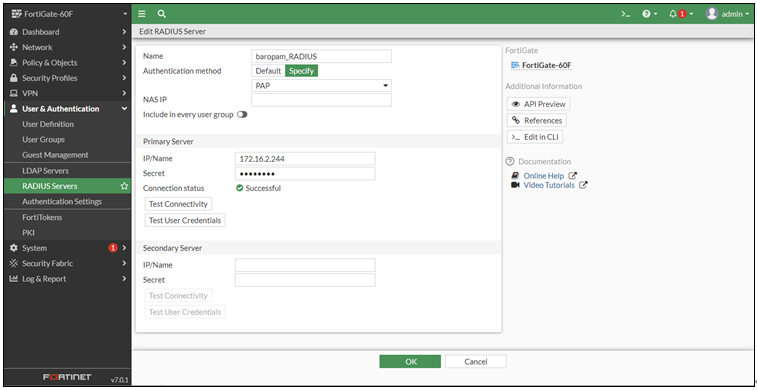

Ex) Authentication server setting screen of FotiGate SSLVPN

 * Authentication Mechanism: Select PAP, Secret: baropam

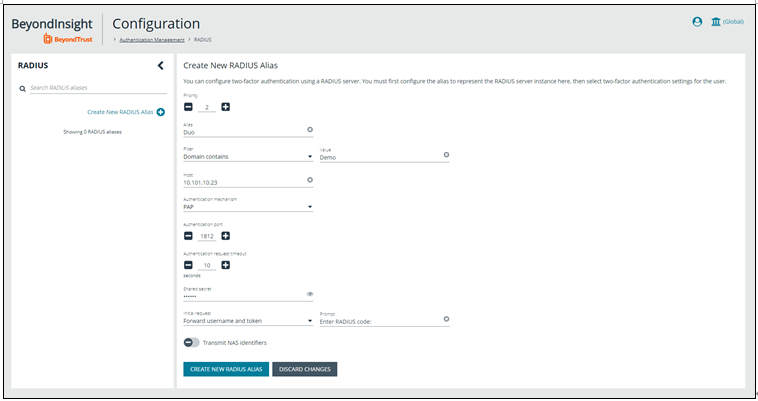

Ex) Authentication server setting screen of Beyondtrust Password Safe

* Authentication Mechanism: PAP, Initial Request: Forward User Name and token, Secret: baropam

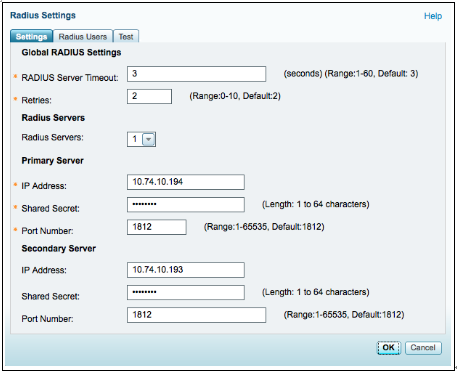

Ex) Cisco SSLVPN Authentication: RADIUS settings screen



* Shared Secret: baropam





3. BaroPAM installation and setup

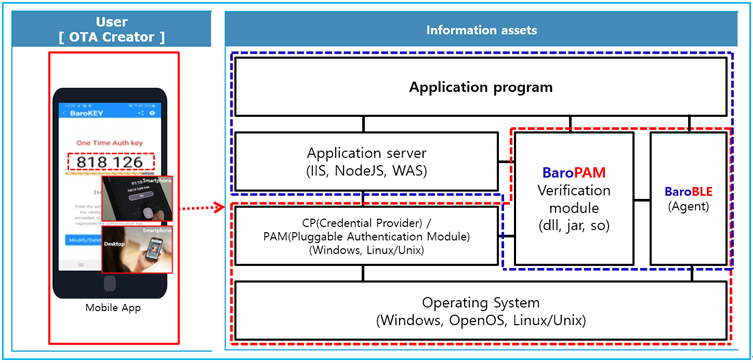

The BaroPAM solution is a zero trust security model based on the Pluggable Authentication Module (PAM) method that anyone can easily and immediately apply to various operating systems and applications that require secondary authentication (additional authentication) to enhance the security of information assets. It is a 3-step authentication solution with biometrics optimized for security.







3.1 Preparation before installing BaroPAM



To use the PAM module, the PAM package must be installed by default. To check the installation, run the following command. If it is not installed, use the command "dnf install pam" for Redhat series and "sudo apt-get install pam" for others.



[root]# rpm -qa | grep pam pam_smb-1.1.7-7.2.1 pam_passwdqc-1.0.2-1.2.2 pam-0.99.6.2-14.el5_11 pam_krb5-2.2.14-22.el5 pam-devel-0.99.6.2-14.el5_11 pam_ccreds-3-5 pam_smb-1.1.7-7.2.1 pam_pkcs11-0.5.3-26.el5 pam-devel-0.99.6.2-14.el5_11 pam_passwdqc-1.0.2-1.2.2 pam-0.99.6.2-14.el5_11 pam_ccreds-3-5 pam_krb5-2.2.14-22.el5 pam_pkcs11-0.5.3-26.el5



In the case of Redhat series, "Selinux" is an abbreviation of "Security Enhanced Linux" and provides a more excellent security policy than the basic Linux. If it is so outstanding that it is activated, a part where BaroPAM cannot be blocked due to security problems occurs (Failed to open tmp secret file "/usr/baropam/.baro_auth~" [Permission denied]). So, if possible, most of them are disabled (SELINUX=enforcing → disabled).



[root] /etc > vi /etc/sysconfig/selinux # This file controls the state of SELinux on the system. # SELINUX= can take one of these three values: #       enforcing - SELinux security policy is enforced. #       permissive - SELinux prints warnings instead of enforcing. #       disabled - SELinux is fully disabled. SELINUX=disabled # SELINUXTYPE= type of policy in use. Possible values are: #       targeted - Only targeted network daemons are protected. #       strict - Full SELinux protection. SELINUXTYPE=targeted   # SETLOCALDEFS= Check local definition changes SETLOCALDEFS=0



It doesn't take effect right away and requires a reboot to take effect.



If you want to apply the changes only to the currently connected terminal without rebooting, run the following command.



[root] /etc > /usr/sbin/setenforce 0



To download and install the BaroPAM authentication module, connect with the root account and create a directory (/usr/baropam) to download and install the module as follows.



[root]# mkdir /usr/baropam



Grant permissions (read, write, execute) of the directory to download and install the BaroPAM module as follows.



[root]# chmod -R 777 /usr/baropam





3.2 Download BaroPAM installation module



After accessing the BaroPAM authentication module with the root account, move to the directory (/usr/baropam) to download and install the module, and download the module as follows.



[root] /usr/baropam > wget http://nuriapp.com/download/libpam_baro_auth-x.x.tar



When the download of the BaroPAM authentication module is complete, the tar file is decompressed as follows.



[root] /usr/baropam > tar -xvf libpam_baro_auth-x.x.tar



When the BaroPAM authentication module is unzipped, the following BaroPAM related modules are created in the baropam directory.



[root] /usr/baropam > ls -al 합계 180 drwxrwxrwx  7 root   root   4096  8월 23 09:59 . drwxr-xr-x 17 root   root   4096  2월 10  2017 .. -r--r--r--  1 root   root      8  3월 24  2021 .baro_acl -r--r--r--  1 root   root    305  7월  2 14:41 .baro_auth -r--r--r--  1 root   root    290  6월 30 12:55 .baro_curl -rwxr-xr-x  1 root   root  69149  4월  6 19:12 baro_auth -rwxr-xr-x  1 root   root  65072  6월 29 16:36 baro_curl drwxr-xr-x  2 root   root   4096  7월 20  2021 jilee -rwxr-xr-x  1 root   root 152649  6월  9 08:19 pam_baro_auth.so -rwxr-xr-x  1 root   root 116158  6월 30 12:54 pam_baro_curl.so -rw-r--r--  1 root   root    150  6월 29 16:29 setcurl.sh -rw-r--r--  1 root   root    221  6월 27 15:59 setenv.sh





3.3 Create BaroPAM configuration file



1) PAM authentication (.baro_auth)



The BaroPAM environment setting file must be created by executing the baro_auth program, and it must be located under /usr/baropam, the directory of the BaroPAM authentication module.



Format)

baro_auth -r rate_limit -R rate_time -t cycle_time –k key_method –e encrypt_flag -H hostname -A acl_type -a acl_filename -S secure_key -s filename



The configuration options of the BaroPAM configuration file are as follows.



Optino	Decumentation	Set value	Etc
-r	OTA key limited number of times (1~10)	3
-R	OTA key time limit (15~600 sec)	30
-t	OTA key authentication cycle (3~60 sec)	30
-k	OTA key authentication method (app1, app256, app384, app512)	app512
-e	Encryption of configuration files (yes or no)	no
-H	Server's hostname (uname -n)	nurit.co.kr
-A	Choose whether to allow or deny 2nd authentication	deny
-a	ACL file name for the account to allow or deny from 2nd authentication (file access permission is 444)	/usr/baropam/.baro_acl
-S	Secure key (license key) provided by the vendor	jIqIcHbVqdpj7b4PzBpM2DiIeBvmHFV/
-s	File name including the directory in which to create the BaroPAM configuration file	/usr/baropam/.baro_auth



Note) The filename of the -s option is the name of the file including the directory where the BaroPAM configuration file will be created (file access permission is 444). If the hostname of the set server does not match, BaroPAM may not operate normally. If the hostname is changed, it must be reflected in the relevant item of the environment setting.



Ex of use)

[root] /usr/baropam > ./baro_auth -r 3 -R 30 -t 30 –k app512 –e no -H nurit.co.kr -A deny -a /usr/baropam/.baro_acl -S jIqIcHbVqdpj7b4PzBpM2DiIeBvmHFV/ -s /usr/baropam/.baro_auth



If the BaroPAM environment setting file is set for each account, connect to the account and proceed with the work. (Not root)



[root] /usr/baropam > ./baro_auth -r 3 -R 30 -t 30 –k app512 –e no -H nurit.co.kr -A deny -a ~/.baro_acl -S jIqIcHbVqdpj7b4PzBpM2DiIeBvmHFV/ -s ~/.baro_auth



1) Your emergency one-time authentication keys are:

The emergency OTA key is a super authentication key that can be used to access the SSH server again in case you lose it when the OTA key generator, the BaroPAM app, is unavailable, so it is good to write it down somewhere.



2) Enter "y" for all the questions that follow.

   Do you want me to update your "/usr/baropam/.baro_auth" file (y/n) y

Preventing man-in-the-middle attacks (y/n) y



The contents set in .baro_auth, the BaroPAM environment setting file, are as follows.



[root] /usr/baropam > cat .baro_auth " AUTH_KEY " RATE_LIMIT 3 30 " KEY_METHOD app512 " CYCLE_TIME 30 " SECURE_KEY jIqIcHbVqdpj7b4PzBpM2DiIeBvmHFV/ " ACL_NAME /usr/baropam/.baro_acl " ACL_TYPE deny " HOSTNAME nurit.co.kr " DISALLOW_REUSE 33458936 19035576 15364353 54649370 84342192



The setting items of .baro_auth, a BaroPAM configuration file, are as follows.



Item	Decumentation	Set value	Etc
AUTH_KEY	Authentication delimiter (fixed)
RATE_LIMIT	OTA key limit count (1~10), time limit (15~600 sec)	3 30
KEY_METHOD	OTA key authentication method (app1, app256, app384, app512: app	app512
CYCLE_TIME	OTA key authentication cycle (3~60 sec)	30
SECURE_KEY	Secure key (license key) provided by the vendor	jIqIcHbVqdpj7b4PzBpM2DiIeBvmHFV/
HOSTNAME	Server's hostname (uname -n)	nurit.co.kr
ACL_TYPE	Differentiate between allow and deny in 2nd authentication	deny
ACL_NAME	ACL Filename for the account to be allowed or excluded from 2nd authentication (file access permission is 444)	/usr/baropam/.baro_acl
DISALLOW_REUSE or ALLOW_REUSE	To prevent a man-in-the-middle attack, if "DISALLOW_REUSE" is set, other users cannot log in during the authentication cycle of the OTA key. If allowed, set "ALLOW_REUSE".	DISALLOW_REUSE





2) cURL authentication (.baro_curl)



The name curl stands for "client URL" and was first released in 1997. That is, the client requests data from the server as a script. BaroPAM requests authentication by calling the http/https authentication site with curl.



The BaroPAM environment setting file must be created by executing the baro_curl program, and it must be located under /usr/baropam, the directory of the BaroPAM authentication module.



Format)

baro_curl -r rate_limit -R rate_time -t cycle_time –k key_method –e encrypt_flag -H hostname –u auth_url -s filename



The configuration options of the BaroPAM configuration file are as follows.



Option	Decumentation	Set value	Etc
-r	OTA key limited number of times (1~10)	3
-R	OTA key time limit (15~600 sec)	30
-t	OTA key authentication cycle (3~60 sec)	30
-k	OTA key authentication method (app1, app256, app384, app512: app)	app512
-e	Encryption of configuration files (yes or no)	no
-H	Server's hostname (uname -n)	nurit.co.kr
-u	The URL to be called includes parameters such as host name (hostname), user account (username), authentication cycle (cycle_time), and OTA key (auth_key)	http://1.23.456.789/baropam/web/result_curl.jsp
-s	File name including the directory in which to create the BaroPAM configuration file	/usr/baropam/.baro_curl



Note) The filename of the -s option is the name of the file including the directory where the BaroPAM configuration file will be created (file access permission is 444). If the hostname of the set server does not match, BaroPAM may not operate normally. If the hostname is changed, it must be reflected in the relevant item of the environment setting.



Ex of use)

[root] /usr/baropam > ./baro_curl -r 3 -R 30 -t 30 –k app512 –e no -H nurit.co.kr -u http://1.23.456.789/baropam/web/result_curl.jsp -s /usr/baropam/.baro_curl



1) Enter "y" for all the questions that follow.

      Do you want me to update your "/usr/baropam/.baro_curl" file (y/n) y

Preventing man-in-the-middle attacks (y/n) y



The contents set in .baro_curl, a BaroPAM environment setting file, are as follows.



[root] /usr/baropam > cat .baro_curl " AUTH_KEY " RATE_LIMIT 3 30 " AUTH_URL http://1.23.456.789/baropam/web/result_curl.jsp " KEY_METHOD app512 " CYCLE_TIME 30 " HOSTNAME baropam " DISALLOW_REUSE



The setting items of .baro_curl, a BaroPAM configuration file, are as follows.



Item	Documentation	Set value	Etc
AUTH_KEY	Authentication delimiter (fixed)
RATE_LIMIT	OTA key limit count (1~10), time limit (15~600 sec)	3 30
AUTH_URL	The URL to be called includes parameters such as host name (hostname), user account (username), authentication cycle (cycle_time), and OTA key (auth_key)	http://1.23.456.789/baropam/web/result_curl.jsp
KEY_METHOD	OTA key authentication method (app1, app256, app384, app512: app)	app512
CYCLE_TIME	OTA key authentication cycle (3~60 sec)	30
HOSTNAME	Server's hostname (uname -n)	nurit.co.kr
DISALLOW_REUSE or ALLOW_REUSE	To prevent a man-in-the-middle attack, if "DISALLOW_REUSE" is set, other users cannot log in during the authentication cycle of the OTA key. If allowed, set "ALLOW_REUSE".	DISALLOW_REUSE





3.4 BaroPAM environment settings



1) PAM authentication



To configure the BaroPAM module, enter it at the top as follows to configure radiusd files.



[root] /usr/baropam > vi /etc/pam.d/radiusd auth       required     /usr/baropam/pam_baro_auth.so forward_pass secret=/usr/baropam/.baro_auth encrypt=no



For reference, the secret parameter sets the name of the BaroPAM configuration file, and the encrypt parameter sets the encryption/decryption flag (yes or no) of the BaroPAM configuration file.



If the BaroPAM environment setting file is set for each account, the way to set the radiusd file to set the BaroPAM module is entered at the top as follows.



[root] /usr/baropam > vi /etc/pam.d/radiusd #%PAM-1.0 auth       required     /usr/baropam/pam_baro_auth.so forward_pass secret=${HOME}/.baro_auth encrypt=no



If you want to set different BaroPAM environment configuration files for each account in a specific directory instead of setting BaroPAM environment configuration files for each account, enter the following at the top to configure the BaroPAM module in the sshd file.



[root] /usr/baropam > vi /etc/pam.d/radiusd #%PAM-1.0 auth       required     /usr/baropam/pam_baro_auth.so forward_pass secret=/usr/baropam/radius/.${USER}_auth encrypt=no



For programs like filezilla that cannot perform "Interactive process", the only way is to use the forward_pass option in PAM to enter the OTA key when entering the password. In this case, the openssh client, RDP (Remote Desktop Protocol) of Windows, Radius, filezilla, etc. all have no choice but to input like this.





When entering the OTA key like a password in the password input window (Password:) using forward_pass, enter the password first and then enter the OTA key without spaces. For example, if the password is "baropam" and the OTA key is "123456", enter "baropam123456".



Using forward_pass, you can enable 2nd authentication for most services that require authentication.





2) cURL authentication



To configure the BaroPAM module, enter it at the top as follows to configure radiusd files.



[root] /usr/baropam > vi /etc/pam.d/radiusd auth       required     /usr/baropam/pam_baro_curl.so forward_pass secret=/usr/baropam/.baro_curl encrypt=no



For reference, the secret parameter sets the name of the BaroPAM configuration file, and the encrypt parameter sets the encryption/decryption flag (yes or no) of the BaroPAM configuration file.



For programs like filezilla, which cannot perform "Interactive process", the only way is to use the forward_pass option in PAM to enter the password and OTA key together when entering the password. In this case, the openssh client, RDP (Remote Desktop Protocol) of Windows, Radius, filezilla, etc. all have no choice but to input like this.





When entering the OTA key like a password in the password input window (Password:) using forward_pass, enter the password first and then enter the OTA key without spaces. For example, if the password is "baropam" and the OTA key is "123456", enter "baropam123456".



Using forward_pass, you can enable 2nd authentication for most services that require authentication.





3) ACL(Access Control list) 설정



1) In the case of PAM authentication When using the BaroPAM module, if you need to exclude from the ACL for the account to be excluded from secondary authentication, create an ACL file in the directory set when setting up the BaroPAM environment, and enter the account to be excluded as follows. (The file access permission for .baro_acl must be set to 444.)



[root] /usr/baropam > vi .baro_acl barokey baropam





4) NTP(Network Time Protocol) settings



Since BaroPAM is a time synchronization method, if the server's time is different from the current time, login to the server may not be possible because the OTA keys do not match.



Recently, as a method of time synchronization (time server time synchronization) for information assets, the system time can be set to the current time in the root account using NTP (Network Time Protocol).



To use NTP, the NTP package must be installed by default. To check the installation, run the following command. If it is not installed, use the command "yum install ntp" for Redhat, CentOS 8 or lower, and "sudo apt-get install ntp" for others.



[root]# rpm -qa | grep ntp ntp-4.2.2p1-18.el5.centos chkfontpath-1.10.1-1.1



The following command can be used to register the ntpd service in the startup program when booting the server and to check whether ntp is activated.



[root]# chkconfig ntpd on [root]# chkconfig --list | grep ntp ntpd            0:off  1:off  2:on  3:on  4:on  5:on  6:off



Check whether the ntpd daemon is active when booting the server using chkconfig. If it is off in level 3 and 5, it is not activated automatically. To activate automatically, you must change 3 and 5 to on (active) with the following command.



[root]# chkconfig --level 3 ntpd on [root]# chkconfig --level 5 ntpd on



NTP servers operating in Korea are as follows.



server kr.pool.ntp.org server time.bora.net



Set the NTP server operating in Korea in "/etc/ntp.conf", the configuration file for the ntpd daemon configuration, as follows.



[root]# vi /etc/ntp.conf # Use public servers from the pool.ntp.org project. # Please consider joining the pool (http://www.pool.ntp.org/join.html). #server 0.centos.pool.ntp.org #server 1.centos.pool.ntp.org #server 2.centos.pool.ntp.org #server 3.centos.pool.ntp.org server kr.pool.ntp.org iburst server time.bora.net   iburst



The iburst option is a kind of option setting that shortens the time required for synchronization.



After the setup for the ntpd daemon setup is complete, it is absolutely necessary to restart the NTP daemon after confirming that the NTP setup has been properly added.



[root]# /etc/init.d/ntpd restart Stopping ntpd: [  OK  ] Starting ntpd: [  OK  ]



You can check the ntpd time with the following command.



[root]# ntpq -p      remote           refid      st t when poll reach   delay   offset  jitter ============================================================================== *121.174.142.82  220.73.142.66    3 u  791 1024  377    9.333   -4.250   0.428 +time.bora.net   58.224.35.2      3 u  654 1024  367    2.926  -27.295  24.481  183.110.225.61  .INIT.          16 u    - 1024    0    0.000    0.000   0.000  LOCAL(0)        .LOCL.          10 l   39   64  377    0.000    0.000   0.001

* The displayed ip is the ntp server getting the current time



To use NTP, the NTP package must be installed by default. To check the installation, run the following command. If it is not installed, use the "dnf install chrony" command to install Redhat, CentOS 8 or later versions.



[root@baropam ~]# rpm -qa | grep chrony chrony-3.5-1.el8.x86_64



NTP servers operating in Korea are as follows.



server kr.pool.ntp.org server time.bora.net



Set the NTP server operating in Korea in "/etc/chrony.conf", the configuration file for the ntpd daemon configuration, as follows.



[root@baropam ~]# vi /etc/chrony.conf   # Use public servers from the pool.ntp.org project. # Please consider joining the pool (http://www.pool.ntp.org/join.html). #pool 2.centos.pool.ntp.org iburst server kr.pool.ntp.org iburst server time.bora.net   iburst   # Record the rate at which the system clock gains/losses time. driftfile /var/lib/chrony/drift   # Allow the system clock to be stepped in the first three updates # if its offset is larger than 1 second. makestep 1.0 3   # Enable kernel synchronization of the real-time clock (RTC). rtcsync   # Enable hardware timestamping on all interfaces that support it. #hwtimestamp *   # Increase the minimum number of selectable sources required to adjust # the system clock. #minsources 2   # Allow NTP client access from local network. allow 192.168.0.0/16   # Serve time even if not synchronized to a time source. #local stratum 10   # Specify file containing keys for NTP authentication. keyfile /etc/chrony.keys   # Get TAI-UTC offset and leap seconds from the system tz database. leapsectz right/UTC   # Specify directory for log files. logdir /var/log/chrony   # Select which information is logged. #log measurements statistics tracking



After the setup for the ntpd daemon setup is complete, it is absolutely necessary to restart the NTP daemon after confirming that the NTP setup has been properly added. (Starting chrony service and registering drive when booting)



[root@baropam ~]# sudo systemctl enable chronyd [root@baropam ~]# sudo systemctl restart chronyd



You can check the ntpd time with the following command.



List of servers receiving time / list of servers registered in chrony.conf file)



[root@baropam ~]# chronyc sources 210 Number of sources = 2 MS Name/IP address         Stratum Poll Reach LastRx Last sample               =============================================================================== ^* ec2-54-180-134-81.ap-nor>     2   6   377    43   -349us[-1059us] +/-   24ms ^- time.bora.net                 2   6   377    42  +1398us[+1398us] +/-   90ms



Server information receiving time)



[root@baropam ~]# chronyc tracking Reference ID    : 36B48651 (ec2-54-180-134-81.ap-northeast-2.compute.amazonaw) Stratum         : 3 Ref time (UTC)  : Sun Mar 22 07:07:43 2020 System time     : 0.000130027 seconds slow of NTP time Last offset     : -0.000710122 seconds RMS offset      : 0.000583203 seconds Frequency       : 19.980 ppm fast Residual freq   : +0.142 ppm Skew            : 3.235 ppm Root delay      : 0.013462566 seconds Root dispersion : 0.017946836 seconds Update interval : 65.0 seconds Leap status     : Normal



Check information such as time status and synchronization)



[root@baropam ~]# timedatectl status                Local time: Sun 2020-03-22 16:08:45 KST            Universal time: Sun 2020-03-22 07:08:45 UTC                  RTC time: Sun 2020-03-22 07:08:44                 Time zone: Asia/Seoul (KST, +0900) System clock synchronized: yes               NTP service: active           RTC in local TZ: no





4. Install and configure MySQL/MariaDB





4.1 Install MariaDB



[root@localhost ~]# dnf -y install mariadb-server



When the MaraDB installation process is completed normally, start MariaDB using the following command.



[root@localhost ~]# systemctl start mariadb



You need to take a few steps to improve MariaDB security options by running the scripts provided with MariaDB.



[root@localhost ~]# mysql_secure_installation



A series of prompts will appear, and if you don't know you set a password, press Enter when prompted.



Enter current password for root (enter for none): Enter



Next, confirm that you want to set a new root password and set a strong password.



Setting the root password ensures that nobody can log into the MariaDB root user without the proper authorisation. Set root password? [Y/n] y New password: baropam Re-enter new password: baropam Password updated successfully! Reloading privilege tables.. ... Success!



All you have to do is press Enter for the prompt that follows.



Remove anonymous users.



Remove anonymous users? [Y/n] y ... Success!



Do not allow root login remotely.



Disallow root login remotely? [Y/n] y ... Success!



Remove the test database.



Remove test database and access to it? [Y/n] y - Dropping test database... ... Success! - Removing privileges on test database... ... Success!



Reload the privilege table.



Reload privilege tables now? [Y/n] y ... Success! Cleaning up...





4.2 MariaDB configuration



First create a database and database user for FreeRADIUS, then create a database and a user identified by a password.



Ex)

Database: radius User: radius Password: baropam



You can change the user and password to whatever you want, but you'll need to pay attention to the configuration you'll do later to change the values ​​appropriately.



root로 MySQL/MariaDB 콘솔에 액세스하여 시작한다.



[root@baropam /]# mysql -uroot -p Enter password: baropam Welcome to the MySQL monitor.  Commands end with ; or \g. Your MySQL connection id is 10 Server version: 8.0.26 Source distribution   Copyright (c) 2000, 2021, Oracle and/or its affiliates.   Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners.   Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.



Execute command to create database and user.



MariaDB [(none)]> CREATE DATABASE radius; MariaDB [(none)]> GRANT ALL ON radius.* TO radius@localhost IDENTIFIED BY "baropam"; MariaDB [(none)]> FLUSH PRIVILEGES; MariaDB [(none)]> use radius



Next, create the RADIUS MySQL schema as the newly created database.



########################################################################### # $Id: 2d0fb7e137f9d6f6a2a48d65e013841ed2bfadf9 $                 # #                                                                         # #  schema.sql                       rlm_sql - FreeRADIUS SQL Module       # #                                                                         # #     Database schema for MySQL rlm_sql module                            # #                                                                         # #     To load:                                                            # #         mysql -uroot -prootpass radius < schema.sql                     # #                                                                         # #                                   Mike Machado <mike@innercite.com>     # ########################################################################### # # Table structure for table 'radacct' # CREATE TABLE IF NOT EXISTS radacct (   radacctid bigint(21) NOT NULL auto_increment,   acctsessionid varchar(64) NOT NULL default '',   acctuniqueid varchar(32) NOT NULL default '',   username varchar(64) NOT NULL default '',   realm varchar(64) default '',   nasipaddress varchar(15) NOT NULL default '',   nasportid varchar(15) default NULL,   nasporttype varchar(32) default NULL,   acctstarttime datetime NULL default NULL,   acctupdatetime datetime NULL default NULL,   acctstoptime datetime NULL default NULL,   acctinterval int(12) default NULL,   acctsessiontime int(12) unsigned default NULL,   acctauthentic varchar(32) default NULL,   connectinfo_start varchar(50) default NULL,   connectinfo_stop varchar(50) default NULL,   acctinputoctets bigint(20) default NULL,   acctoutputoctets bigint(20) default NULL,   calledstationid varchar(50) NOT NULL default '',   callingstationid varchar(50) NOT NULL default '',   acctterminatecause varchar(32) NOT NULL default '',   servicetype varchar(32) default NULL,   framedprotocol varchar(32) default NULL,   framedipaddress varchar(15) NOT NULL default '',   framedipv6address varchar(45) NOT NULL default '',   framedipv6prefix varchar(45) NOT NULL default '',   framedinterfaceid varchar(44) NOT NULL default '',   delegatedipv6prefix varchar(45) NOT NULL default '',   PRIMARY KEY (radacctid),   UNIQUE KEY acctuniqueid (acctuniqueid),   KEY username (username),   KEY framedipaddress (framedipaddress),   KEY framedipv6address (framedipv6address),   KEY framedipv6prefix (framedipv6prefix),   KEY framedinterfaceid (framedinterfaceid),   KEY delegatedipv6prefix (delegatedipv6prefix),   KEY acctsessionid (acctsessionid),   KEY acctsessiontime (acctsessiontime),   KEY acctstarttime (acctstarttime),   KEY acctinterval (acctinterval),   KEY acctstoptime (acctstoptime),   KEY nasipaddress (nasipaddress) ) ENGINE = INNODB;   # # Table structure for table 'radcheck' # CREATE TABLE IF NOT EXISTS radcheck (   id int(11) unsigned NOT NULL auto_increment,   username varchar(64) NOT NULL default '',   phone_no varchar(32) NOT NULL default '',   cycle_time varchar(6) NOT NULL default '60',   attribute varchar(64)  NOT NULL default '',   op char(2) NOT NULL DEFAULT '==',   value varchar(253) NOT NULL default '',   PRIMARY KEY  (id),   KEY username (username(32)) );   # # Table structure for table 'radgroupcheck' # CREATE TABLE IF NOT EXISTS radgroupcheck (   id int(11) unsigned NOT NULL auto_increment,   groupname varchar(64) NOT NULL default '',   attribute varchar(64)  NOT NULL default '',   op char(2) NOT NULL DEFAULT '==',   value varchar(253)  NOT NULL default '',   PRIMARY KEY  (id),   KEY groupname (groupname(32)) );   # # Table structure for table 'radgroupreply' # CREATE TABLE IF NOT EXISTS radgroupreply (   id int(11) unsigned NOT NULL auto_increment,   groupname varchar(64) NOT NULL default '',   attribute varchar(64)  NOT NULL default '',   op char(2) NOT NULL DEFAULT '=',   value varchar(253)  NOT NULL default '',   PRIMARY KEY  (id),   KEY groupname (groupname(32)) );   # # Table structure for table 'radreply' # CREATE TABLE IF NOT EXISTS radreply (   id int(11) unsigned NOT NULL auto_increment,   username varchar(64) NOT NULL default '',   attribute varchar(64) NOT NULL default '',   op char(2) NOT NULL DEFAULT '=',   value varchar(253) NOT NULL default '',   PRIMARY KEY  (id),   KEY username (username(32)) );   # # Table structure for table 'radusergroup' # CREATE TABLE IF NOT EXISTS radusergroup (   id int(11) unsigned NOT NULL auto_increment,   username varchar(64) NOT NULL default '',   groupname varchar(64) NOT NULL default '',   priority int(11) NOT NULL default '1',   PRIMARY KEY  (id),   KEY username (username(32)) );   # # Table structure for table 'radpostauth' # CREATE TABLE IF NOT EXISTS radpostauth (   id int(11) NOT NULL auto_increment,   username varchar(64) NOT NULL default '',   pass varchar(64) NOT NULL default '',   reply varchar(32) NOT NULL default '',   authdate timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,   PRIMARY KEY  (id),   KEY username (username(32)) ) ENGINE = INNODB;   # # Table structure for table 'nas' # CREATE TABLE IF NOT EXISTS nas (   id int(10) NOT NULL auto_increment,   nasname varchar(128) NOT NULL,   shortname varchar(32),   type varchar(30) DEFAULT 'other',   ports int(5),   secret varchar(60) DEFAULT 'secret' NOT NULL,   server varchar(64),   community varchar(50),   description varchar(200) DEFAULT 'RADIUS Client',   PRIMARY KEY (id),   KEY nasname (nasname) );





5. FreeRADIUS integration test





5.1 PAM, cURL authentication



1) Create an account to test



Create a local account to test with.



[root@localhost ~]# useradd raduser [root@localhost ~]# passwd raduser Changing password for user raduser. New password: Retype new password: passwd: all authentication tokens updated successfully.



To execute a shell script related to the user's login information (login-ID, phone number), go to the BaroPAM registration directory (/usr/baropam/radius) and execute it.



Note) When executing a shell script, arguments or argument values must be separated by spaces.



Ex) Shell script to create a user (login-id) (if auths=pam) - setuser.sh



#!/bin/sh   export LANG=C ENV_HOME=/usr/baropam/radius; ACC_HOME=/home/$1   userdel –rf $1 \rm ${ENV_HOME}/.$1_auth   useradd –d ${ACC_HOME} -m -s /bin/bash $1 echo $2 | passwd -stdin $1   \cp ${ENV_HOME}/.baro_auth ${ENV_HOME}/.$1_auth   sed -i "s/01012341234/$3/g" ${ENV_HOME}/.$1_auth



When running the shell script (setuser.sh) that creates the user(login-ID), the parameters are as follows.

$1 : Login-ID to create

$2 : Login-ID's password

$3 : Login-ID phone number



[root@localhost ~]# sh setuser.sh nurit baropam 01027714076



Ex) Shell script to change the password of a user(login-id) (if auths=pam) - setpasswd.sh



#!/bin/sh   export LANG=C   echo $2 | passwd -stdin $1



When executing the shell script (setpasswd.sh) to change the user (login-ID) password, the parameters are as follows.

$1 : Login-ID

$2 : Change password



[root@localhost ~]# sh setpasswd.sh nurit !@Baropam#



Ex) Shell script to change the phone number of a user(login-ID) (if auths=pam) - setphone.sh



#!/bin/sh   export LANG=C ENV_HOME=/usr/baropam/radius;   sed -i "s/$2/$3/g" ${ENV_HOME}/.$1_auth



When executing the shell script (setphone.sh) that changes the phone number of the user(login-ID), the parameters are as follows.

$1 : Login-ID

$2 : Phone number before change

$3 : Phone number after change



[root@localhost ~]# sh setphone.sh nurit 01012341234 01027714076



Ex) Shell script that changes the password and phone number of the user(login-ID) (if auths=pam) - chgpasswd.sh



#!/bin/sh   export LANG=C   echo $2 | passwd -stdin $1   sed -i "s/$3/$4/g" ${ENV_HOME}/.$1_auth



When executing the shell script (setpasswd.sh) that changes the user (login-ID) password and phone number, the parameters are as follows.

$1 : Login-ID

$2 : Change password

$3 : Phone number before change

$4 : Phone number after change



[root@localhost ~]# sh chgpasswd.sh nurit !@Baropam# 01012341234 01027714076



Ex) Shell script to delete user(login-id) (if auths=pam) - deluser.sh



#!/bin/sh   export LANG=C ENV_HOME=/usr/baropam/radius; ACC_HOME=/home/$1   userdel –rf $1 \rm ${ENV_HOME}/.$1_auth



When executing the shell script (deluser.sh) that deletes a user(login-ID), the parameters are as follows.

$1 : Login-ID to delete



[root@localhost ~]# sh deluser.sh nurit



Ex) Shell script to generate a user(login-id) (if auth=http) - setuser.sh



#!/bin/sh   export LANG=C ENV_HOME=/usr/baropam/radius; ACC_HOME=/home/$1   userdel –rf $1 \rm ${ENV_HOME}/.$1_auth   useradd –d ${ACC_HOME} -m -s /bin/bash $1 echo $1 | passwd -stdin $1   \cp ${ENV_HOME}/.baro_auth ${ENV_HOME}/.$1_auth



When running the shell script (setuser.sh) that creates the user(login-ID), the parameters are as follows.

$1 : Login-ID to create



[root@localhost ~]# sh setuser.sh nurit baropam



Ex) Shell script to delete user(login-id) (if auths=http) - deluser.sh



#!/bin/sh   export LANG=C ENV_HOME=/usr/baropam/radius; ACC_HOME=/home/$1   userdel –rf $1 \rm ${ENV_HOME}/.$1_auth



When executing the shell script (deluser.sh) that deletes a user(login-ID), the parameters are as follows.

$1 : Login-ID to delete



[root@localhost ~]# sh deluser.sh nurit





2) Running in FreeRADIUS debug mode



Open a new ssh session and run radiusd in debug mode as follows.



[root@localhost ~]# radiusd -X



If you get the following error when running radiusd in debug mode:



Then run radiusd -X but I have this error:   Failed reading private key file /etc/raddb/certs/server.pem:error:06065064:digital envelope routines:EVP_DecryptFinal_ex:bad decrypt rlm_eap_tls: Failed initializing SSL context rlm_eap (EAP): Failed to initialise rlm_eap_tls /etc/raddb/mods-enabled/eap[17]: Instantiation failed for module "eap"



After doing the following, run radiusd as follows.



[root@localhost ~]# cd  /etc/raddb/certs [root@localhost ~]# ./bootstrap



First, switch to the ssh session and test.



Format)

radtest <username> (<pasword><verification code>) localhost 0 baropam



Run the FreeRADIUS test with BaroPAM as follows.



[root@localhost ~]# radtest root baropam024747 localhost 0 baropam Sent Access-Request Id 243 from 0.0.0.0:39668 to 127.0.0.1:1812 length 74         User-Name = "root"         User-Password = "baropam903481"         NAS-IP-Address = 10.0.2.15         NAS-Port = 0         Message-Authenticator = 0x00         Cleartext-Password = "baropam903481" Received Access-Accept Id 243 from 127.0.0.1:1812 to 127.0.0.1:39668 length 20





3) Running the FreeRADIUS daemon



Run radiusd, the FreeRADIUS daemon, in the background as follows.



[root@localhost ~]# radiusd -s & [1] 1961



Check if radiusd, the FreeRADIUS daemon, is normally started as follows.



[root@localhost ~]# ps -ef|grep radiusd root        1961    1818  0 14:11 pts/1    00:00:00 radiusd -s root        1964    1818  0 14:11 pts/1    00:00:00 grep --color=auto radiusd



Check the UDP port 1812 used by the FreeRADIUS daemon radiusd as follows.



[root@localhost ~]# netstat -an | grep 1812 udp        0      0 127.0.0.1:18120         0.0.0.0:*                          udp        0      0 0.0.0.0:1812            0.0.0.0:*                          udp6       0      0 :::1812                 :::*



Check the logs authenticated by BaroPAM by linking FreeRADIUS as follows.



[root@localhost ~]# tail –f /var/log/secure Mar 26 13:54:11 localhost radiusd(pam_baro_auth)[1857]: Try to update RATE_LIMIT line.[3 30 1616734451] Mar 26 13:56:46 localhost radiusd(pam_baro_auth)[1857]: Try to update RATE_LIMIT line.[3 30 1616734606] Mar 26 14:00:48 localhost radiusd(pam_baro_auth)[1934]: Try to update RATE_LIMIT line.[3 30 1616734848] Mar 26 14:00:48 localhost radiusd(pam_baro_auth)[1934]: Invalid verification code Mar 26 14:00:48 localhost radiusd[1934]: pam_unix(radiusd:auth): authentication failure; logname=root uid=0 euid=0 tty= ruser= rhost=  user=scjoo1 Mar 26 14:01:13 localhost radiusd(pam_baro_auth)[1934]: Try to update RATE_LIMIT line.[3 30 1616734873] Mar 26 14:01:36 localhost radiusd(pam_baro_auth)[1934]: Try to update RATE_LIMIT line.[3 30 1616734873 1616734896] Mar 26 14:02:15 localhost radiusd(pam_baro_auth)[1934]: Try to update RATE_LIMIT line.[3 30 1616734935]





4) Shutdown the FreeRADIUS daemon



First, check if radiusd, the FreeRADIUS daemon, is running as follows.



[root@localhost ~]# ps -ef|grep radiusd root        1961    1818  0 14:11 pts/1    00:00:00 radiusd -s root        1964    1818  0 14:11 pts/1    00:00:00 grep --color=auto radiusd



After checking the process ID (1961) of radiusd, the FreeRADIUS daemon, terminate it as follows.



[root@localhost ~]# kill -9 1961



Reference) FreeRADIUS related log file: /var/log/radius/radius.log





5.2 SQL authentication



1) Work ahead



MariaDB's UDF (User Defined Function) is used in MariaDB to call an external program written in C or C++ or send data.



It must be written in C or C++, and the operating system must support dynamic loading.



Copy the attached file (libbaroudf.so) to the directory with the result of the following command in the mysql shell.



mysql> SHOW VARIABLES LIKE 'plugin_dir'; +---------------+--------------------------+ | Variable_name | Value                    | +---------------+--------------------------+ | plugin_dir    | /usr/lib64/mysql/plugin/ | +---------------+--------------------------+ 1 row in set (0.00 sec)



① Copy the BaroPAM module



[root@localhost ~]# cp libbaroudf.so /usr/lib64/mysql/plugin/



② Create BaroPAM function



mysql> create function TO_VERIFYKEYL         returns string soname 'libbaroudf.so'; Query OK, 0 rows affected (0.01 sec)



Note) TO_VERIFYKEYL function



- NAME

  TO_VERIFYKEYL



- SYNOPSIS

  void * TO_VERIFYKEYL(const void *username, const void *phone_no, const void *cycle_time)



- DESCRIPTION

  OTA key authentication function

  username: Sets the ID entered in the login-ID item of the login screen.

  phone_no: Set the smartphone number for each user only with numbers.

cycle_time: Sets the OTA key generation cycle (3~60 sec) specified for each user.



- RETURN VALUES

  Returns the generated OTA key



Note) If the OTA key generation cycle specified for each user and the smartphone number is different from the OTA key generator, verification may fail because the OTA key is different. The information must match.



③ Change authorize_check_query



In /etc/raddb/mods-config/sql/main/mysql/queries.conf file, change authorize_check_query to TO_VERIFYKEYL function.



Ex) In case of validating only OTA key

authorize_check_query = "\         SELECT id, username, attribute, TO_VERIFYKEYL(username, phone_no, cycle_time) as value, op \         FROM ${authcheck_table} \         WHERE username = '%{SQL-User-Name}' \         ORDER BY id"



Ex) When verifying (password + OTA key) in a combined form

authorize_check_query = "\         SELECT id, username, attribute, CONCAT(value, TO_VERIFYKEYL(username, phone_no, cycle_time)) as value, op \         FROM ${authcheck_table} \         WHERE username = '%{SQL-User-Name}' \         ORDER BY id"



④ Create user to test



To test, add the following values ​​to the table.



MariaDB [(none)]> insert into radgroupreply (groupname,attribute,op,value) values ('baropam','Auth-Type',':=', 'Local');   MariaDB [(none)]> insert into radcheck (username ,phone_no,cycle_time,attribute,op,value) values ('admin1','01027714076','60','Cleartext-Password',':=','admin1');   MariaDB [(none)]> insert into radusergroup (username,groupname) values ('admin1', 'baropam');





2) Running in FreeRADIUS debug mode



Open a new ssh session and run radiusd in debug mode as follows.



[root@localhost ~]# radiusd -X



If you get the following error when running radiusd in debug mode:



Then run radiusd -X but I have this error:   Failed reading private key file /etc/raddb/certs/server.pem:error:06065064:digital envelope routines:EVP_DecryptFinal_ex:bad decrypt rlm_eap_tls: Failed initializing SSL context rlm_eap (EAP): Failed to initialise rlm_eap_tls /etc/raddb/mods-enabled/eap[17]: Instantiation failed for module "eap"



After doing the following, run radiusd as follows.



[root@localhost ~]# cd  /etc/raddb/certs [root@localhost ~]# ./bootstrap



First, switch to the ssh session and test.



Format)

radtest <username> (<pasword><verification code>) localhost 0 baropam   or   radtest <username> (<verification code>) localhost 0 baropam



Run the FreeRADIUS test with BaroPAM as follows



Ex) When verifying a OTA key

[root] /usr/baropam > radtest admin1 969533 localhost 0 baropam Sent Access-Request Id 66 from 0.0.0.0:36066 to 127.0.0.1:1812 length 76         User-Name = "admin1"         User-Password = "969533"         NAS-IP-Address = 10.0.2.15         NAS-Port = 0         Message-Authenticator = 0x00         Cleartext-Password = "969533" Received Access-Accept Id 66 from 127.0.0.1:1812 to 127.0.0.1:36066 length 20



Ex) When verifying (password + OTA key) in a combined form

[root] /usr/baropam > radtest admin1 admin1969533 localhost 0 baropam Sent Access-Request Id 66 from 0.0.0.0:36066 to 127.0.0.1:1812 length 76         User-Name = "admin1"         User-Password = "admin1969533"         NAS-IP-Address = 10.0.2.15         NAS-Port = 0         Message-Authenticator = 0x00         Cleartext-Password = "admin1969533" Received Access-Accept Id 66 from 127.0.0.1:1812 to 127.0.0.1:36066 length 20





3) Running the FreeRADIUS daemon



Run radiusd, the FreeRADIUS daemon, in the background as follows.



[root@localhost ~]# radiusd -s & [1] 1961



Check if radiusd, the FreeRADIUS daemon, is normally started as follows.



[root@localhost ~]# ps -ef|grep radiusd root        1961    1818  0 14:11 pts/1    00:00:00 radiusd -s root        1964    1818  0 14:11 pts/1    00:00:00 grep --color=auto radiusd



Check the UDP port 1812 used by the FreeRADIUS daemon radiusd as follows.



[root@localhost ~]# netstat -an | grep 1812 udp        0      0 127.0.0.1:18120         0.0.0.0:*                          udp        0      0 0.0.0.0:1812            0.0.0.0:*                          udp6       0      0 :::1812                 :::*





4) Shutdown the FreeRADIUS daemon



First, check if radiusd, the FreeRADIUS daemon, is running as follows.



[root@localhost ~]# ps -ef|grep radiusd root        1961    1818  0 14:11 pts/1    00:00:00 radiusd -s root        1964    1818  0 14:11 pts/1    00:00:00 grep --color=auto radiusd



After checking the process ID (1961) of radiusd, the FreeRADIUS daemon, terminate it as follows.



[root@localhost ~]# kill -9 1961



Reference) FreeRADIUS related log file: /var/log/radius/radius.log







6. About BaroPAM





Version 1.0 - Official Release - 2016.12.1

Copyright ⓒ Nurit corp. All rights reserved.

http://www.nurit.co.kr



Company: Nurit Co., Ltd.

Registration Number: 258-87-00901

CEO: Jongil Lee

Tel: +8210-2771-4076(Technical support, sales inquiry)

email: mc529@nurit.co.kr

Address: #913, 15, Magokjungang 2-ro, Gangseo-gu, Seoul (Magok-dong, Magok Techno Tower 2)
